DRYING CABINETS

Get a Price/Quote

MOQ : 1 Piece

DRYING CABINETS Specification

Function
Drying with precise control

Dimension (L*W*H)
1200 x 650 x 1900 mm (customizable)

Accuracy
2C / 5% RH

Humidity Range
20% - 80% RH

Display Type
LED/LCD Digital Controller

Shape
Rectangular

Frequency
50-60 Hz

Properties
Uniform Air Circulation, Adjustable Shelves, Insulated Chamber, Low Noise Level

Phase
Single/Three Phase

Weight
Approx. 150-200 kg

Color Code
White/Grey/Blue (custom options available)

Suitable For
Laundry, Pharma, Textile, R&D, Electronics Industries

Warranty
1 Year

Product Type
DRYING CABINETS

Treatment Type
Hot Air Drying

Use
Efficient drying of textiles, instruments, and components

Material
304 stainless steel

Application
Garment, Laboratory, Industrial, Material Drying

Power
2-3 kW (varies with size/model)

Height
1900 mm (standard)

Automation Grade
Semi Automatic/Fully Automatic

Storage Capacity
5-20 racks (customizable)

Temperature Range
Ambient to 120C

Display
Digital

Voltage
220-240 V/380-415 V, 50/60 Hz

Power Source
Electric

Insulation
High-density mineral wool

Air Circulation
Motorized blower with adjustable speed

Heating Element Type
Tubular heaters

Internal Material
Stainless Steel/Aluminum Shelves

Noise Level
<60 dB

Timer
0-999 minutes digital timer

Door Type
Double-walled insulated, front opening

Safety Features
Overheat protection, Alarm, Safety cut-off

Caster Wheels
Heavy-duty, for mobility

Control System
Microprocessor-based PID control

DRYING CABINETS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DRYING CABINETS

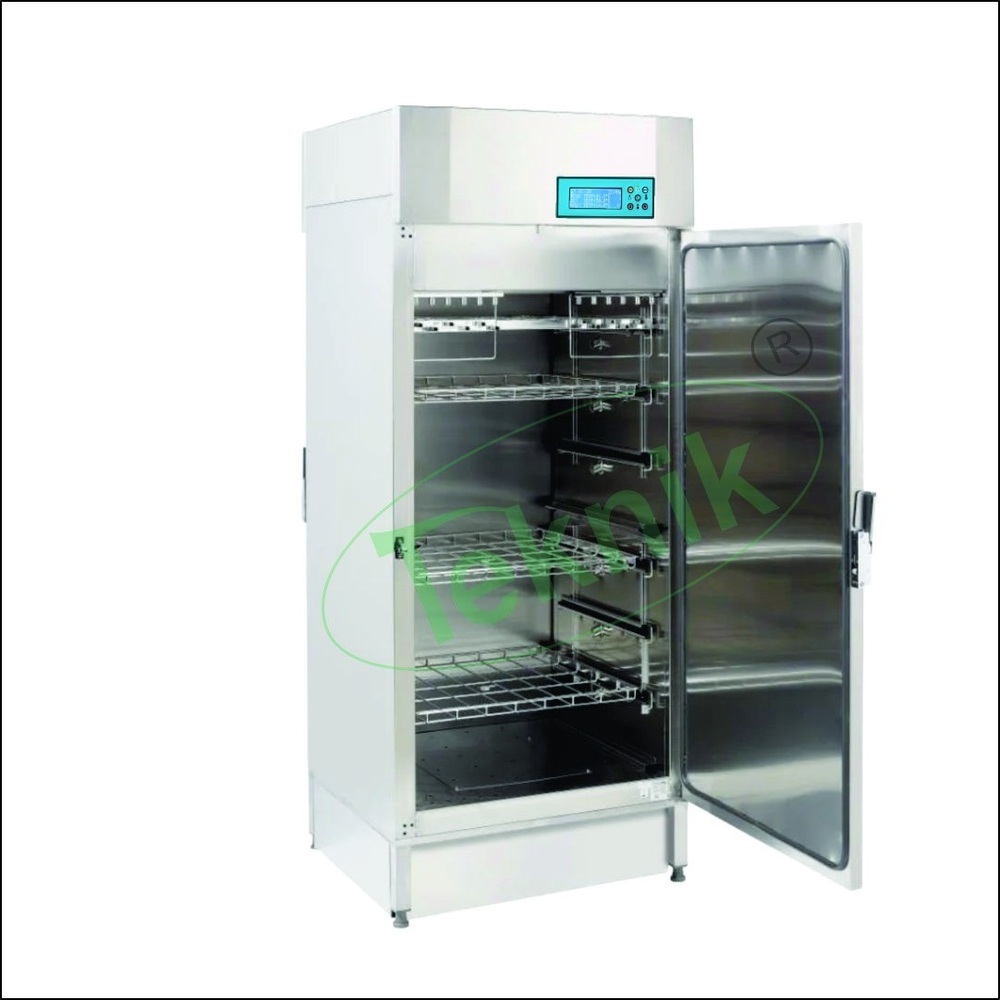

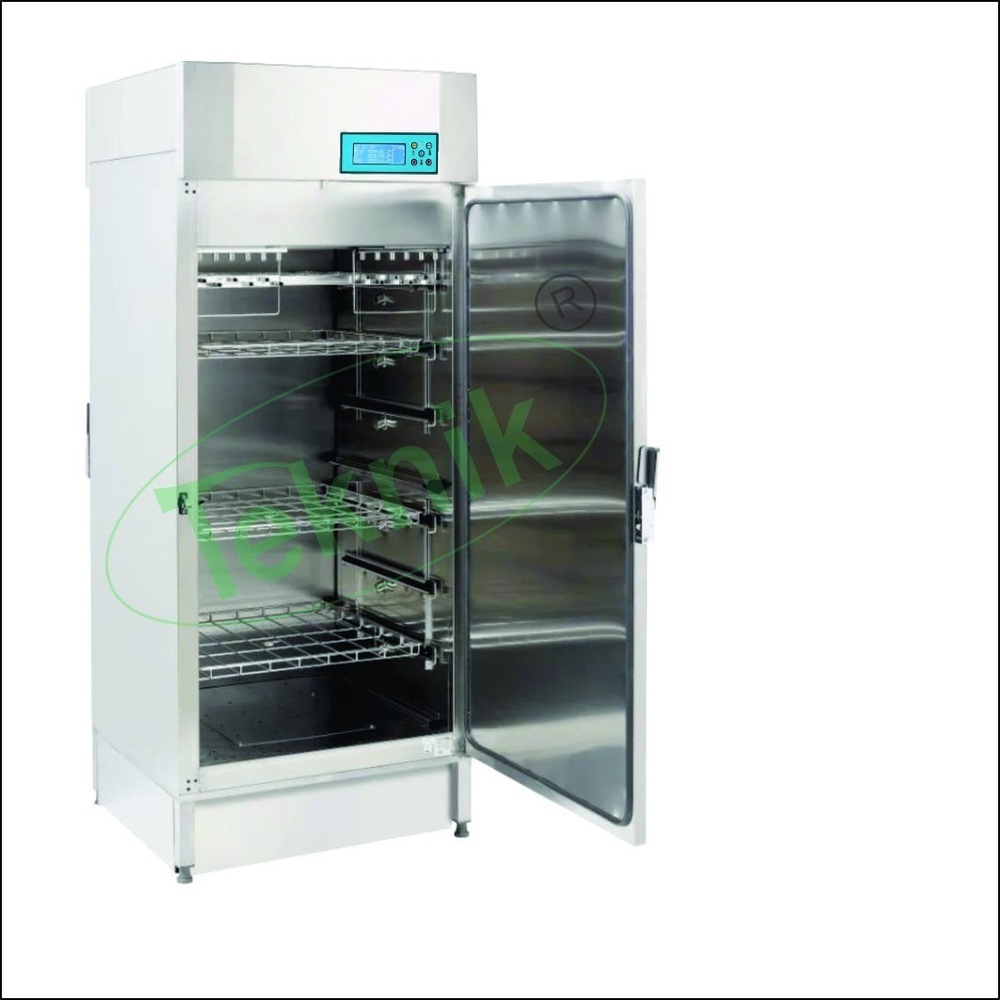

Drying Cabinets

Ensure Safe and Fast Drying

Aftercleaning and disinfecting medical devices dry them in your CSSD Teknik drying cabinetSingledoor or passthrough 44 shelves accessories for various needs

Application

Hot airsterilizer is used to sterilize small surgical instrument glass petri dishesetc

This deviceis suitable for medical and veterinary clinics hospitals pharmacies healthcare centers and laboratories

Features

Adjustablesterilization time

Overtemperaturealarm

Top airoutlet with adjustable air volume

Heating usfast forcedair convection fast sterilization

Highprecision microprocessor temperature control 304 stainless steel inner chamber

Fan insidefully sealed inside no air circulation with external air temperature risefast

Drying Cabinets

Capacity

25 L

50 L

70 L

100 L

260 L

Temp Range

RT 10 250C

Temp Precision

01C

Temp Fluctuation

05C

Ambient Temp

5 40C

Timing Range

1 9999 min

Shelves No

2 pcs

Consumption

500 W

750 W

1050 W

1500 W

2000 W

Power Supply

AC 110220 V 10 5060 Hz

Internal Size WDH mm

300 300270

420 350350

440 375470

550 350520

700 650570

External Size WDH mm

590470440

710520520

540550870

840540720

890730770

Packing Size WDH mm

710600550

810640600

6706601040

950680880

1020890930

Gross Weight Kg

100

Highly Efficient and Versatile Drying Solution

Designed for garment, pharmaceutical, laboratory, R&D, textile, and electronics industries, this drying cabinet ensures quick and uniform drying of textiles, instruments, and components. Adjustable shelves and customizable dimensions enable you to adapt the internal space to suit your workflow. Its hot air drying system allows you to maintain material integrity without excess noise, thanks to its <60 dB noise level.

Reliable Performance and Safety Features

Our drying cabinets are engineered with user protection in mind. Overheat protection, alarm systems, and automatic safety cut-offs mitigate risks during operation. The double-walled insulated chamber, made from 304 stainless steel, promotes durability and maintains thermal efficiency. The microprocessor-based PID controller ensures accuracy and stability in temperature and humidity control.

User-Friendly Operation and Mobility

A digital LED/LCD controller provides intuitive operation and real-time data, while the timer (0-999 minutes) automates drying cycles for greater efficiency. Heavy-duty caster wheels enable effortless mobility, making the cabinet convenient for use across facilities. Custom options for color, rack number, and dimensions ensure it meets specific user requirements.

FAQ's of DRYING CABINETS:

Q: How does the air circulation system work in the drying cabinet?

A: The cabinet uses a motorized blower with adjustable speed to circulate air uniformly within the chamber. This ensures even heat distribution, resulting in consistent drying of all items placed inside, minimizing both moisture retention and drying time.

Q: What types of materials and industries are these drying cabinets suitable for?

A: These versatile drying cabinets are ideal for garments, laboratory instruments, industrial components, electronics, pharmaceuticals, and textiles, catering to needs in laundry, research, manufacturing, and QC labs.

Q: When should I utilize the adjustable speed blower feature?

A: Adjust the blower speed depending on the material being dried. Delicate items or sensitive samples may require lower speeds to prevent damage, while bulkier or more robust materials benefit from higher airflow for faster drying.

Q: Where can the drying cabinets be installed, considering space and mobility?

A: With customizable dimensions (typical size: 1200 x 650 x 1900 mm), these cabinets can be installed in workshops, laboratories, or production areas. Heavy-duty caster wheels enable easy relocation to suit changing workspace requirements.

Q: What safety features are integrated into the cabinet for secure operation?

A: Safety is addressed with integrated overheat protection, audible/visible alarms, and automatic safety cut-offs. This ensures prompt response to abnormal conditions, protecting users and materials.

Q: How does the control system enhance process accuracy and efficiency?

A: A microprocessor-based PID controller maintains precise temperature (ambient to 120C) and humidity (20%-80% RH) levels, offering accurate drying conditions for a wide variety of materials, improving repeatability and process reliability.

Q: What are the main benefits of using these drying cabinets?

A: Key benefits include uniform air distribution, precise environmental control, customizable configurations, reliable safety mechanisms, low-noise operation, and a user-friendly interface-collectively ensuring efficient, tailored drying for a variety of applications.
