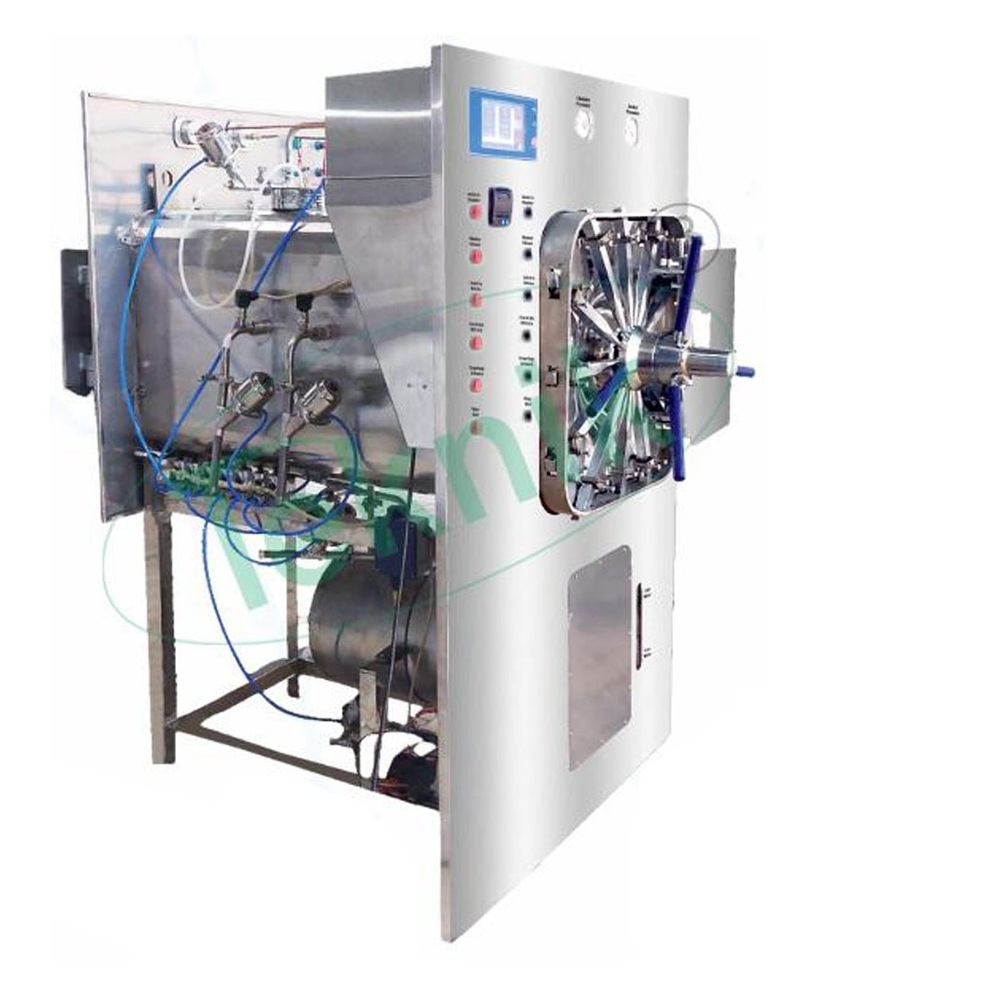

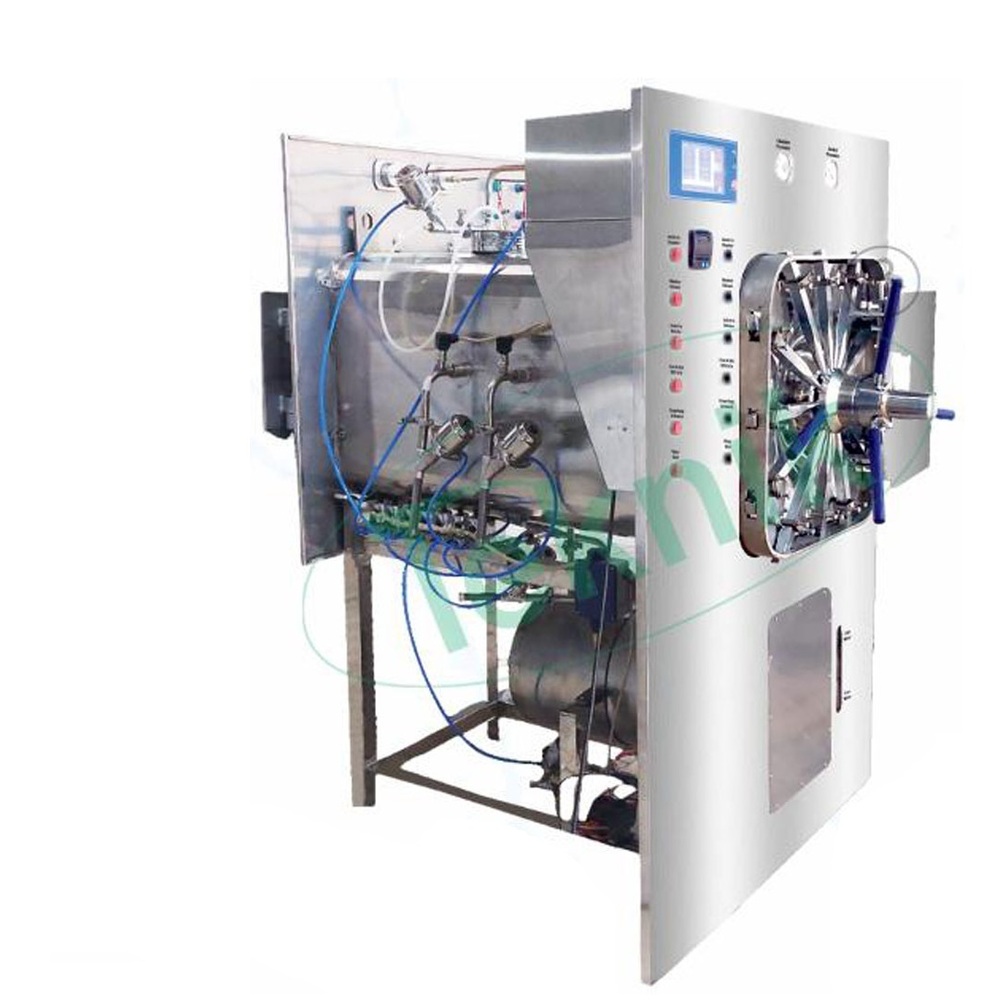

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

Price 100 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RECTANGULAR STEAM STERILIZER DOUBLE DOOR Specification

Treatment Type
High Pressure Steam

Color Code
Silver/Steel Finish

Automation Grade
Fully Automatic

Accuracy
1C

Use
Hospitals, laboratories, research institutes, pharmaceutical industry

Display Type
Digital/LED

Humidity Range
Ambient to 100% during operation

Weight
Approx. 450 - 1200 kg (depending on size/model)

Application
Sterilization of medical, laboratory, and surgical instruments

Storage Capacity
60L 600L (as per selected model)

Suitable For
Surgical instruments, dressings, linen, laboratory glassware

Phase
Single or Three Phase (as per model requirements)

Frequency
50 Hz/60 Hz

Material
304 stainless steel

Temperature Range
121C 134C

Warranty
1 Year

Power
8 kW - 36 kW (model-dependent)

Shape
Rectangular

Properties
Corrosion resistant, leak-proof, high pressure withstand

Dimension (L*W*H)
Customizable; Typical: 1500 mm x 750 mm x 900 mm

Function
Steam sterilization

Height
900 mm (customizable)

Product Type
RECTANGULAR STEAM STERILIZER DOUBLE DOOR

Power Source
Electric/Steam

Voltage
220V/380V (as required)

Display
Digital control panel with process indicators

RECTANGULAR STEAM STERILIZER DOUBLE DOOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About RECTANGULAR STEAM STERILIZER DOUBLE DOOR

Tekniks line of healthcare sterilizers aredesigned for hospital operating rooms, central sterile supply departments,ambulatory surgery centers, dental schools, and other clinical settings.Autoclaves come standard with vacuum, liquid, gravity and flash cycles tosterilize surgical instruments, utensils, gowns, wrapped/unwrapped goods andother healthcare instruments and supplies. All sterilizers are equipped withreliable non-proprietary components, maximizing u whileproviding an ultra-low total cost of ownership. Autoclaves continue to be thefirst line of defense against infection and Teknik takes this responsibilityseriously.

This type sterilizer is applicable for medicalliquid, instrument and dressing fabric in medical institution and pharmaceuticalfactory.

Application:

It is applicable for the sterilization ofunpacked solid instrument in department of Stomatology, Ophthalmology,Operation room and CSSD.

Features:

Drying function.

Interlock function.

Automatic sterilization process.

304 stainless steel material chamber.

Safety valve for over pressure protection.

Automatically fill water in case of low waterlevel.

Over-temperature, over-pressure protectiondevice.

Water level sensor, the power will be cut-off.

Double door optional

Rectangular Steam Sterilizer Double Door Standard Series
Model	Chamber Dimension	Chamber Volume	Steam Generator (KW	Steam Generator) Capacity (Litres)	Floor Space (Width x Depth)	Packed
JEQ-1RD-180RT	480 x 460 x 920	195	9 KW	45	1130 x 1900	380
JEQ-1RD-250RT	460 x 460 x 1220	258	18 KW	60	1175 x 2210	600
JEQ-1RD-300RT	520 x 520 x 1220	330	18 KW	60	1230 x 2400	750
JEQ-1RD-450RT	620 x 620 x 1220	469	18 KW	60	1230 x 2400	750
JEQ-1RD-800RT	620 x 920 x 1530	873	36 KW	90	1230 x 2400	750
JEQ-1RD-1600RT	920 x 1220 x 1530	1717	72 KW	100	1460 x 3090	900
Teknik: - We make customise product as per customer needs, above are our standard model for offering based on our market research for best utility and sizes needed for standard drum size.

Superior Safety & Hygiene

Equipped with robust safety features, the double door sterilizer minimizes contamination risks using a pass-through design, pressure safety valves, and door interlocks. Automatic pressure release mechanisms ensure operator safety while maintaining process integrity. The use of silicone or neoprene gaskets provides leak-proof sealing, ideal for holding high pressures and high temperatures during sterilization cycles.

Precision & Versatility

Designed to accommodate a range of medical, laboratory, and surgical applications, this sterilizer offers programmable cycle timers, precise temperature control (121C134C), and digital/LED displays for easy monitoring. Its corrosion-resistant stainless steel chamber and customizable size options allow adaptation for varied sterilization volumes, optimizing the workflow for facilities of different scales.

Efficient Performance & Compliance

This floor-mounted unit runs on electric or steam power, with model-dependent wattage and compatibility with both single and three-phase electrical supplies. Its insulation, automation grade, and standards compliance (IS/IEC/CE) elevate operational reliability while ensuring eco-friendly, high-pressure steam sterilization meeting various institutional requirements.

FAQs of RECTANGULAR STEAM STERILIZER DOUBLE DOOR:

Q: How does the double door pass-through design improve sterilization safety?

A: The double door pass-through configuration provides a physical separation between dirty and clean areas, enabling sterile transfer of items and minimizing cross-contamination risks within medical or laboratory environments.

Q: What materials are used in the chamber and gaskets of this sterilizer?

A: The chamber is constructed from high-quality 304 or 316 grade stainless steel for optimum durability and resistance to corrosion. Gaskets are made from steam-resistant silicone or neoprene, ensuring a tight seal even at high pressures and temperatures.

Q: When should the programmable cycle timer be adjusted during operation?

A: Users can set the cycle timer (adjustable from 0 to 99 minutes) before starting the sterilization process, based on the nature and quantity of instruments to be sterilized, ensuring optimized treatment time for effective results.

Q: Where is the steam sterilizer installed, and what mounting options are available?

A: The sterilizer is specifically floor-mounted and designed for installation in hospitals, laboratories, research institutes, and pharmaceutical facilities. Dimensions are customizable to fit within available space requirements.

Q: What is the process for starting and managing a sterilization cycle?

A: After loading the chamber and selecting cycle parameters on the digital control panel, the door interlocks activate. The sterilizer initiates the steam cycle, maintains pressure (1.2-2.2 bar), and automatically releases pressure at cycle completion, ensuring operator safety and process consistency.

Q: How does automated operation benefit users?

A: Fully automatic control streamlines cycle initiation, monitoring, and completion. It reduces manual intervention, enhances sterilization accuracy (1C), and improves efficiency, especially when handling large quantities or diverse instrument batches.

Q: What are the key advantages of using this sterilizer in healthcare and laboratory environments?

A: Key benefits include robust sterilization efficacy, enhanced workflow separation, advanced safety features, leak-proof operation, corrosion resistance, and compliance with international standards, ensuring reliable performance and peace of mind for users.

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

RECTANGULAR STEAM STERILIZER DOUBLE DOOR

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in CSSD EQUIPMENT Category

AUTOCLAVE - VERTICAL

AUTOCLAVE - VERTICAL

Price 100 INR / Piece

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Material : S.S. 304

Product Type : AUTOCLAVE VERTICAL

Get a Price/Quote

ETO STERILIZER

ETO STERILIZER

Price 100 INR / Piece

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Material : 304 stainless steel

Product Type : ETO STERILIZER

Get a Price/Quote

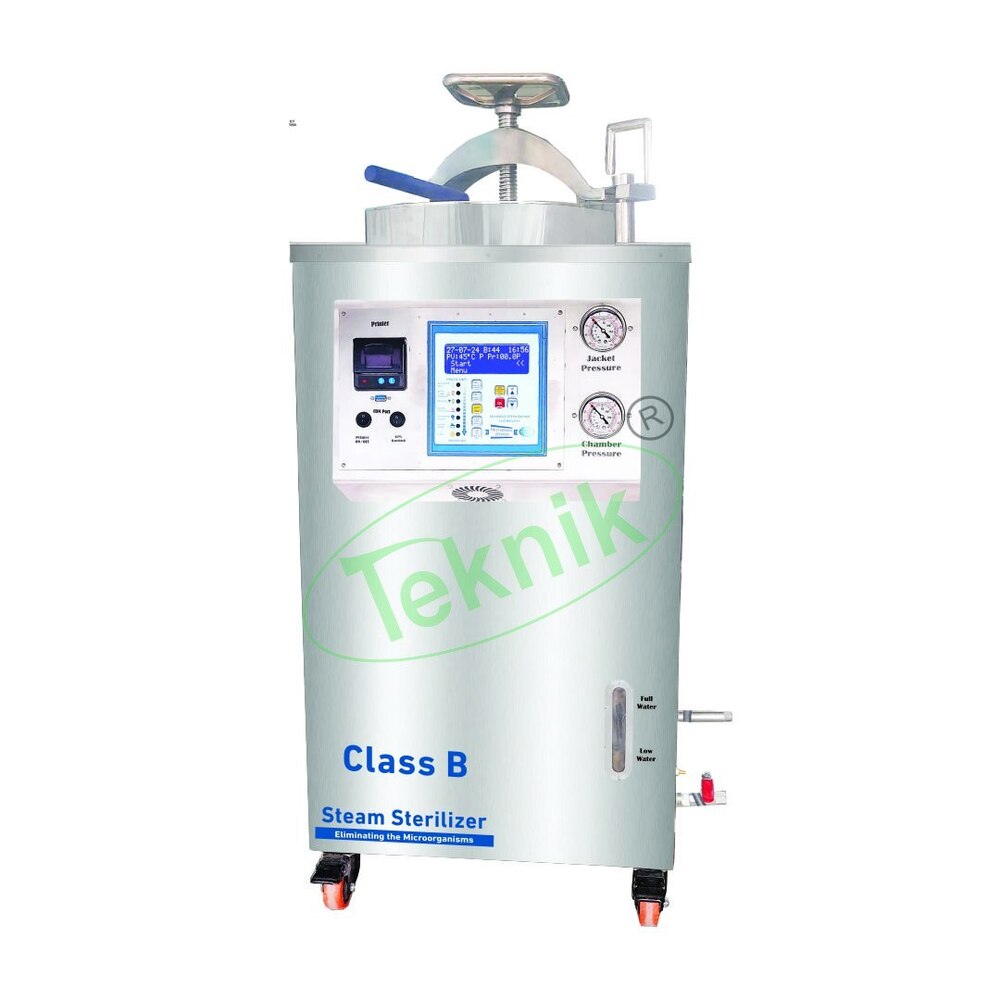

STEAM STERILIZER (CYLINDRICAL VERTICAL)

STEAM STERILIZER (CYLINDRICAL VERTICAL)

Price 100 INR / Piece

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Material : 304 stainless steel

Product Type : STEAM STERILIZER (CYLINDRICAL VERTICAL)

Get a Price/Quote

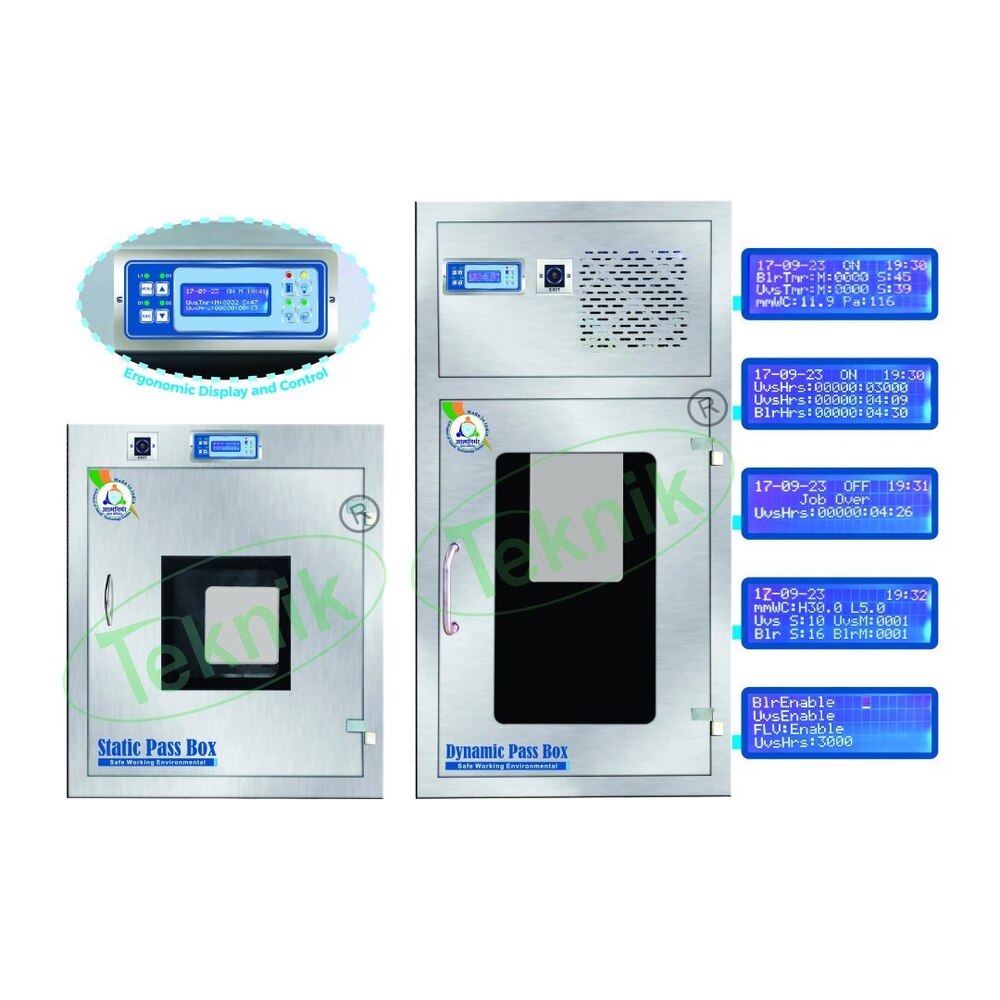

STATIC & DYNAMIC PASS BOX
