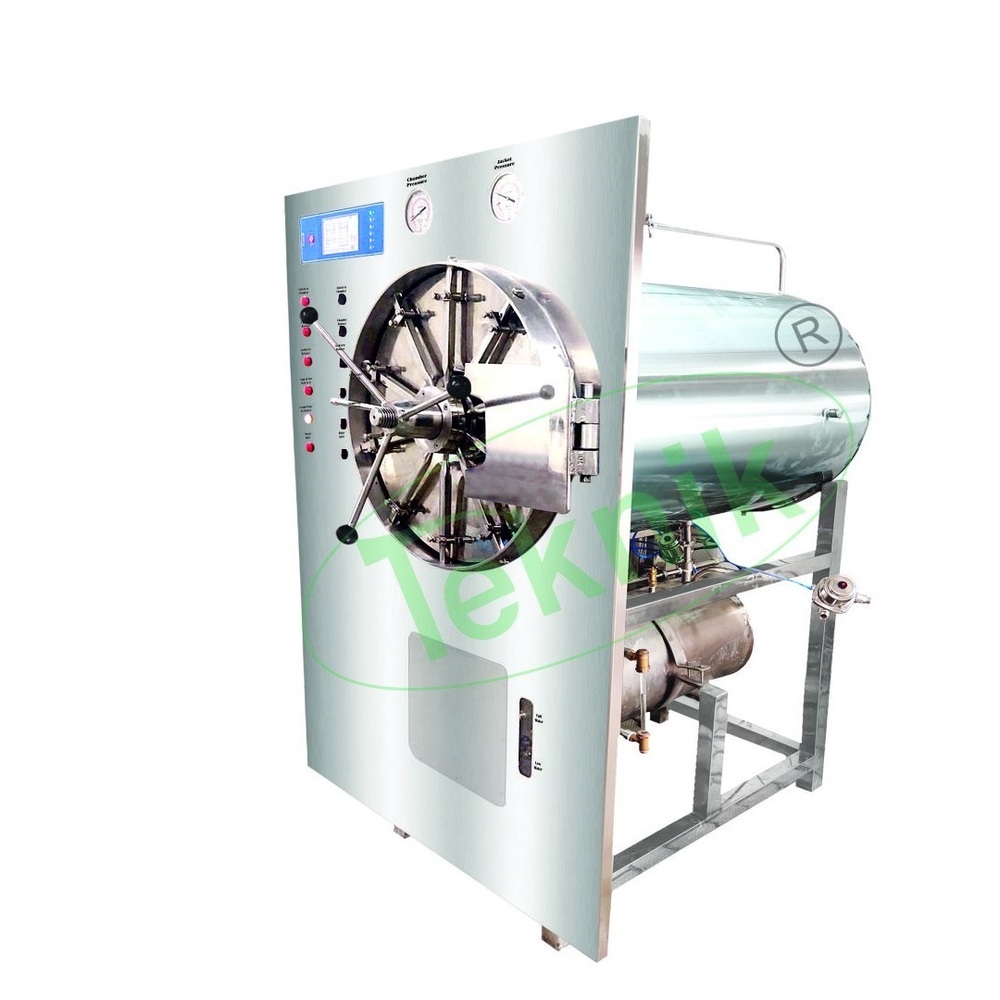

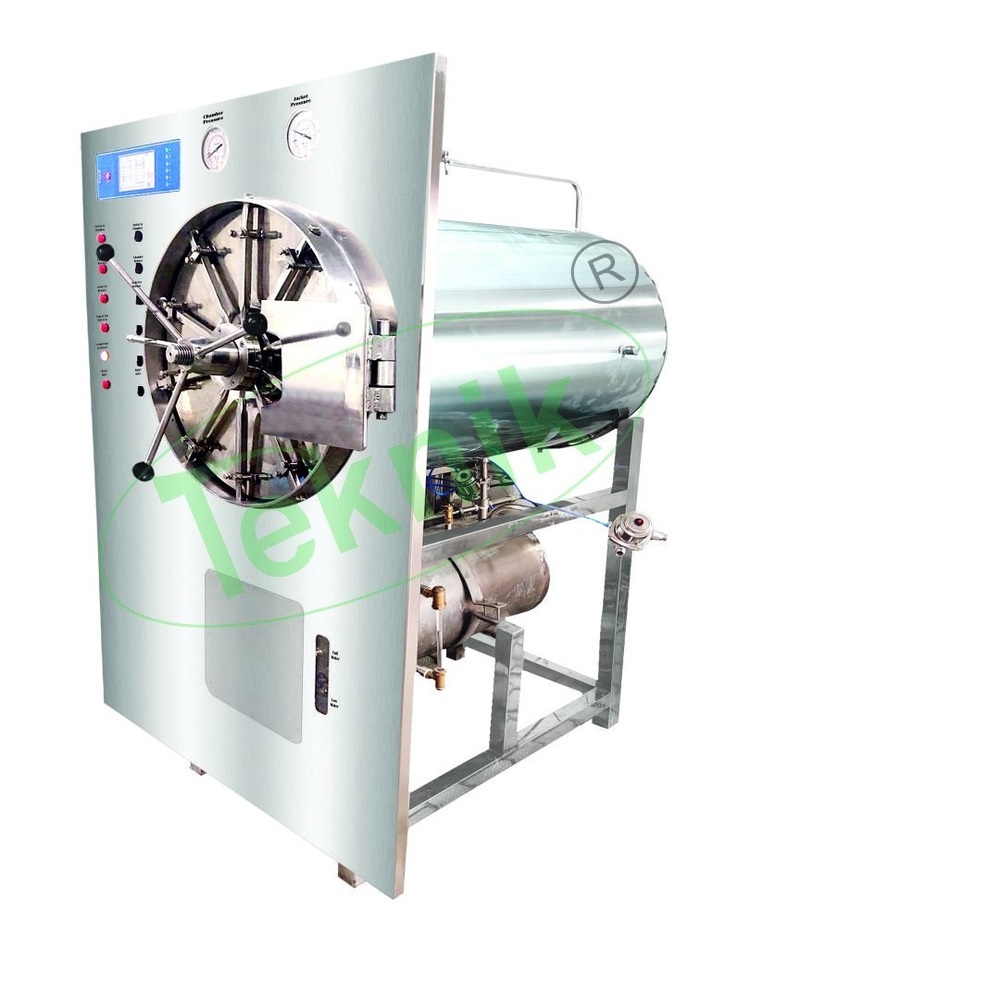

CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Get a Price/Quote
MOQ : 1 Piece

CYLINDRICAL STEAM STERILIZER SINGLE DOOR Specification

  • Application
  • Sterilization of laboratory/medical equipment
  • Dimension (L*W*H)
  • Varies by model (Typical: 600mm x 900mm x 1200mm)
  • Phase
  • Single Phase
  • Product Type
  • CYLINDRICAL STEAM STERILIZER SINGLE DOOR
  • Storage Capacity
  • 35 to 100 liters (varies)
  • Height
  • Model dependent (approx. 900mm)
  • Function
  • High-pressure steam sterilization
  • Power
  • 3 kW / 4.5 kW
  • Shape
  • Horizontal Cylindrical
  • Color Code
  • Silver / Customized
  • Treatment Type
  • Moist Heat/Steam
  • Properties
  • Pressure vessel with single cylindrical chamber
  • Suitable For
  • Hospitals, Laboratories, Pharmaceutical Units
  • Display Type
  • Analog/Digital
  • Automation Grade
  • Semi-Automatic / Automatic
  • Temperature Range
  • 121C to 134C
  • Weight
  • Approx. 100-200 kg (model dependent)
  • Accuracy
  • 1C
  • Material
  • 304 stainless steel
  • Use
  • Sterilizing instruments, glassware, dressings, etc.
  • Warranty
  • 1 Year
  • Frequency
  • 50 Hz
  • Voltage
  • 220V / 230V / 240V AC
  • Power Source
  • Electric
  • Display
  • Analog Pressure Gauge / Digital Optional
  • Cycle Time
  • 20-45 minutes (depending on load)
  • Control System
  • Microprocessor/Digital Timer (optional)
  • Mounting Type
  • Floor Mounted
  • Heating Element Material
  • Nickel Plated/Copper
  • Door Type
  • Single Hinged Manual Door with Safety Lock
  • Safety Features
  • Automatic Pressure Release Valve, Low Water Cut-off, Pressure Switch
  • Drain Valve
  • Yes, provided for easy drainage
  • Water Level Indicator
  • Yes
  • Insulation
  • Glass Wool Insulation for Energy Efficiency
  • Manufacturing Standard
  • ISI/ISO Certified
  • Working Pressure
  • 15 psi to 20 psi
  • Gasket Material
  • Silicone Rubber/Neoprene
  • Chamber Finish
  • Polished Stainless Steel


CYLINDRICAL STEAM STERILIZER SINGLE DOOR Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


About CYLINDRICAL STEAM STERILIZER SINGLE DOOR

Tekniks lineof healthcare sterilizers are designed for hospital operating rooms, centralsterile supply departments, ambulatory surgery centers, dental schools, andother clinical settings. Autoclaves come standard with vacuum, liquid, gravityand flash cycles to sterilize surgical instruments, utensils, gowns,wrapped/unwrapped goods and other healthcare instruments and supplies. Allsterilizers are equipped with reliable non-proprietary components, maximizing uptimewhile providing an ultra-low total cost of ownership. Autoclaves continue to bethe first line of defense against infection and Teknik takes thisresponsibility seriously.

This typesterilizer is applicable for medical liquid, instrument and dressing fabric inmedical institution and pharmaceutical factory.

Application

It isapplicable for the sterilization of unpacked solid instrument in department ofStomatology, Ophthalmology, Operation room and CSSD.

Features

Dryingfunction.

Interlockfunction.

Automaticsterilization process.

304 stainlesssteel material chambers.

Safety valvefor over pressure protection.

Automaticallyfill water in case of low water level.

Over-temperature,over-pressure protection device.

Water levelsensor the power will be cut-off.

Double dooroptional

Cylindrical Steam Sterilizer Single Door Standard Series

Model

Chamber Diameter (mm)

Chamber Depth (mm)

Chamber Volume (Litres)

Steam Generator (KW

Steam Generator) Capacity (Litres)

Floor Space (Width x Depth)

Packed

JEQ-1B-80CY

410

620

80

9 KW

45

1130 x 1900

380

JEQ-1B-180CY

520

920

195

9 KW

45

1175 x 2210

600

JEQ-1B-250CY

520

1220

259

18 KW

60

1230 x 2400

750

JEQ-1B-270CY

620

920

277

18 KW

60

1230 x 2400

750

JEQ-1B-360CY

620

1220

368

18 KW

60

1230 x 2400

750

JEQ-1B-500CY

750

1220

511

30 KW

90

1460 x 3090

900

Teknik: - We make customise product as per customer needs, above are our standard model for offering based on our market research for best utility and sizes needed for standard drum size.



Advanced Chamber Design for Maximum Sterilization

This sterilizer features a horizontal cylindrical chamber made from polished 304-grade stainless steel, which resists corrosion and ensures thorough and even steaming. The chamber's single hinged manual door incorporates a safety lock, making it secure and simple to operate. Glass wool insulation minimizes heat loss, maintaining energy efficiency throughout each sterilization cycle.


Intelligent Controls and Enhanced Safety Mechanisms

Equipped with a microprocessor or a digital timer control option, this sterilizer offers precise cycle management. Critical safety features, such as an automatic pressure release valve, pressure switch, and low water cut-off, are built in to ensure operator safety and equipment protection. Analog or digital displays allow clear monitoring of temperature and pressure.


Versatile Applications Across Industries

Widely suitable for hospitals, laboratories, and pharmaceutical environments, this sterilizer accommodates a variety of instruments, glassware, and dressings. Multiple cycle time options (20-45 minutes) enable flexibility depending on load requirements. With models offering storage capacities from 35 to 100 liters and electrical compatibility (220V-240V, single phase), it seamlessly integrates into various operational setups.

FAQ's of CYLINDRICAL STEAM STERILIZER SINGLE DOOR:


Q: How does the Cylindrical Steam Sterilizer Single Door operate for sterilization?

A: The sterilizer uses high-pressure steam at temperatures between 121C and 134C and operates at 15-20 psi. Instruments and equipment are loaded into the chamber, the door is securely latched, and an analog or digital control system activates the sterilization cycle. Cycle times range from 20 to 45 minutes based on the load size.

Q: What safety mechanisms are integrated into this steam sterilizer?

A: Key safety features include an automatic pressure release valve, a low water cut-off to prevent overheating, a pressure switch, and a secure manual safety lock on the door. These features ensure safe operation for operators and consistent protection for the equipment.

Q: When should this sterilizer be used in medical or laboratory settings?

A: This sterilizer is ideal for use whenever sterile instruments or materials are required, such as before surgical procedures or laboratory experiments. It is particularly suited for sterilizing instruments, dressings, glassware, and other items that require moist heat treatment.

Q: Where can the Cylindrical Steam Sterilizer Single Door be installed?

A: Designed as a floor-mounted unit, it is suitable for installation in hospitals, research laboratories, and pharmaceutical manufacturing areas. The variety of model dimensions and electric compatibility ensures it fits different facility layouts.

Q: What is the process for draining and maintaining the unit?

A: The sterilizer is equipped with a drain valve for easy removal of residual water after each cycle. Regular maintenance involves checking the water level indicator, inspecting the silicone rubber or neoprene gasket, and ensuring the glass wool insulation remains effective.

Q: What are the main benefits of using this sterilizer model?

A: Users benefit from rapid and reliable sterilization cycles, energy efficiency due to glass wool insulation, robust stainless steel construction, compliance with ISI/ISO standards, and a one-year warranty. Optional digital controls also enhance ease of operation and accuracy.
