AUTOCLAVE - VERTICAL
AUTOCLAVE - VERTICAL
AUTOCLAVE - VERTICAL
AUTOCLAVE - VERTICAL
AUTOCLAVE - VERTICAL
AUTOCLAVE - VERTICAL
images Send Inquiry
Request To Call Back

AUTOCLAVE - VERTICAL

Price 100 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

AUTOCLAVE - VERTICAL Specification

  • Application
  • CSSD EQUIPMENT
  • Storage Capacity
  • Approx. 40 liters
  • Dimension (L*W*H)
  • 16 x 24 inches
  • Phase
  • Single Phase
  • Display Type
  • Analog
  • Color Code
  • Silver
  • Warranty
  • 1 Year
  • Product Type
  • AUTOCLAVE - VERTICAL
  • Power
  • 2.5 kW
  • Weight
  • Approx. 38 kg
  • Automation Grade
  • Semi Automatic
  • Shape
  • Vertical Cylindrical
  • Treatment Type
  • Steam Sterilization
  • Temperature Range
  • Up to 134°C
  • Material
  • S.S. 304
  • Suitable For
  • Hospitals, Laboratories, Research
  • Properties
  • Sterilization, Durable construction
  • Function
  • Sterilization of Instruments
  • Use
  • Medical and Laboratory Sterilization
  • Frequency
  • 50 Hz
  • Height
  • 24 inches
  • Accuracy
  • ±2%
  • Display
  • Pressure Gauge
  • Voltage
  • 220 V
  • Power Source
  • Electric
  • Timer
  • Mechanical Timer, Adjustable
  • Pressure Range
  • 15-20 psi
  • Chamber Construction
  • Stainless Steel, Leak Proof
  • Door Type
  • Radial Locking System
  • Water Level Indicator
  • Provided
  • Heater Type
  • Immersion Heater
  • Safety Features
  • Pressure Release Valve, Safety Lock
  • Insulation Type
  • Double wall with insulation
  • Accessories Included
  • Perforated Baskets, Power Cord


AUTOCLAVE - VERTICAL Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE

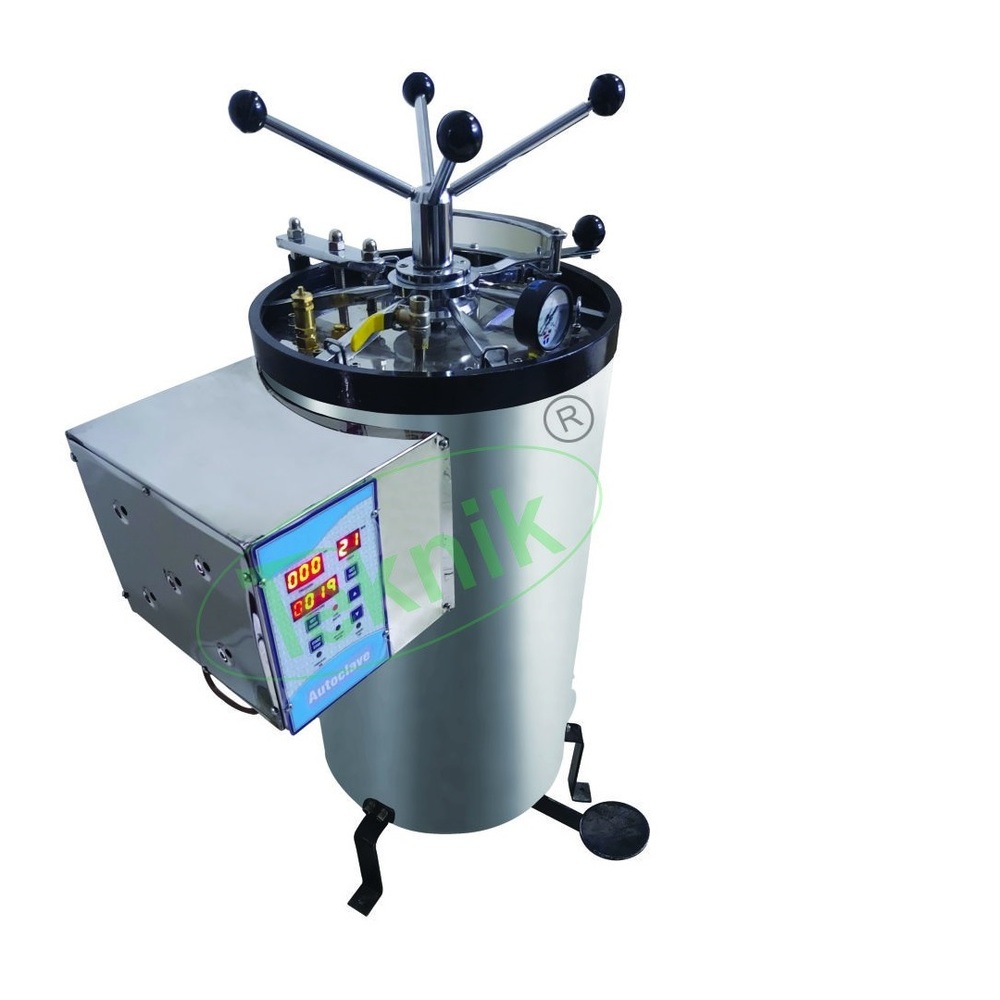

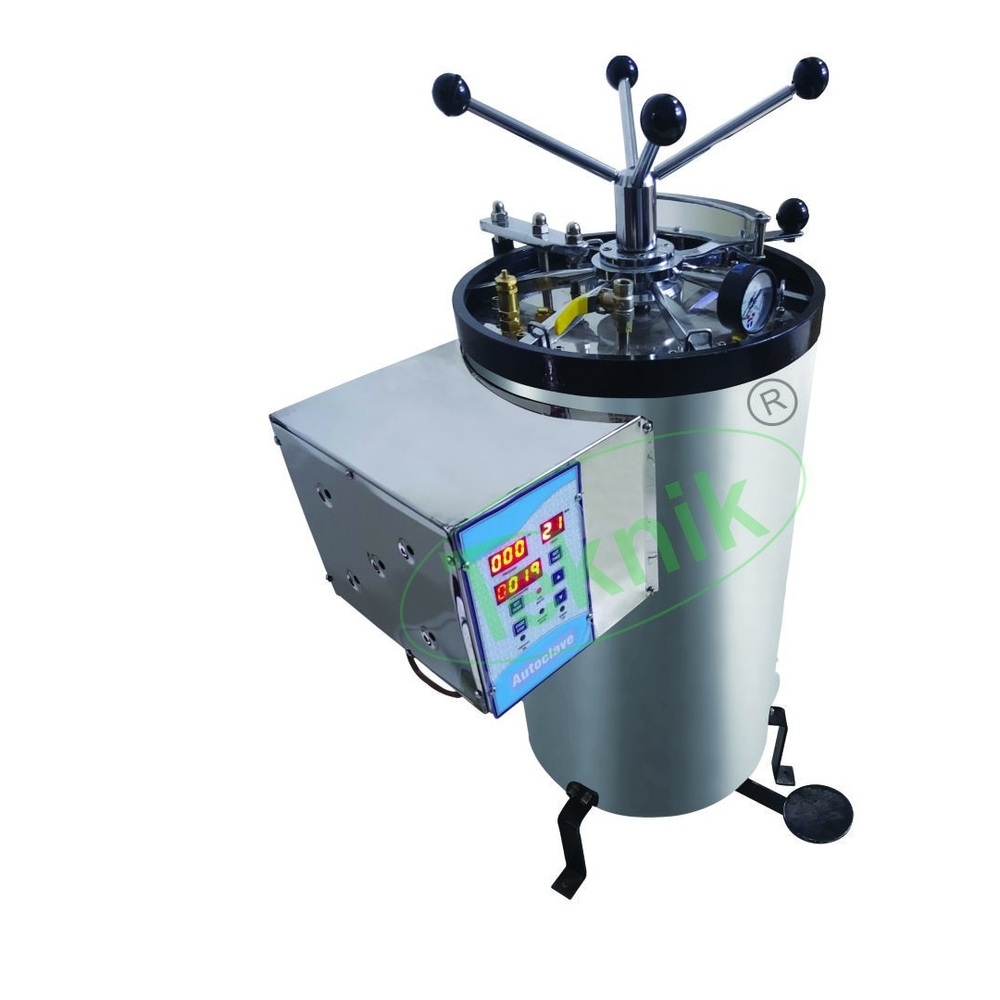

About AUTOCLAVE - VERTICAL

VerticalAutoclave fitted with S.S/Gun metal lid having an inner & outer chambermade of S.S. 304 also fitted with vacuum breaker as a safety device.

AllAutoclaves are fitted with standard accessories as a radial lock, pressuregauge, steam release cock, and safety valve to work on to 220 volts.



Autoclave - Vertical

Robust and Compact Space-efficient

Chamber Size in

(Dia x Depth)

Load

Capacity (Approx.)

250 x 450 mm

2 KW

22 Ltr.

300 x 500 mm

3 KW

40 Ltr.

350 x 550 mm

4 KW

50 Ltr.

400 x 600 mm

5 KW

78 Ltr.

450 x 600 mm

5 KW

98 Ltr.

550 x 750 mm

6 KW

152 Ltr.





Robust Construction for Reliable Sterilization

Engineered from S.S. 304 stainless steel, this vertical autoclave provides strong resistance to corrosion and guarantees durability. Its leak-proof chamber design, combined with double-wall insulation, ensures long-term, safe, and energy-efficient use for intensive medical and laboratory environments.


Advanced Safety and User-Friendly Features

The autoclave is equipped with multiple safety mechanisms, including a pressure release valve, a mechanical timer, and a safety lock. A visible water level indicator and analog pressure gauge make operation secure and intuitive, while the radial locking system on the door guarantees a tight and secure seal every cycle.

FAQs of AUTOCLAVE - VERTICAL:


Q: How does the vertical autoclave ensure effective sterilization of medical instruments?

A: The autoclave uses high-pressure saturated steam at temperatures up to 134C and a controlled pressure range of 1520 psi to effectively sterilize instruments. The double-wall design with insulation ensures even heat distribution, while the immersion heater maintains precise steam temperature for optimal sterilization results.

Q: What safety features are included in this vertical autoclave?

A: The unit incorporates multiple safety features, such as a pressure release valve to prevent over-pressurization, a safety lock to secure the chamber during operation, a water level indicator, and a mechanical timer. The radial locking system on the door further enhances user safety by securing the chamber tightly during cycles.

Q: Where can this autoclave be installed and used?

A: This vertical autoclave is suitable for installation in hospitals, research laboratories, CSSDs, and other healthcare facilities requiring reliable sterilization. Its compact vertical design (16 x 24 inches) and approximate 38 kg weight make it easy to integrate into most sterile processing environments.

Q: What accessories are provided with this autoclave for user convenience?

A: Each autoclave comes with perforated baskets for easy arrangement of instruments, a durable power cord, and a comprehensive users manual. These accessories facilitate efficient loading, safe operation, and maintenance.

Q: How is the temperature and pressure monitored during the sterilization process?

A: The autoclave features an analog pressure gauge for real-time pressure monitoring with 2% accuracy and a mechanical timer to set and track the sterilization cycle. The water level indicator helps maintain the correct water level to ensure consistent steam generation.

Q: What is the benefit of using stainless steel (S.S. 304) in autoclave construction?

A: S.S. 304 stainless steel provides excellent resistance to corrosion, high durability, and easy cleaning, making it ideal for medical and laboratory sterilization applications. Its robust construction contributes to the long service life and consistent performance of the autoclave.
