STEAM STERILIZER (CYLINDRICAL VERTICAL)

Price 100 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

STEAM STERILIZER (CYLINDRICAL VERTICAL) Specification

Warranty
1 Year

Product Type
STEAM STERILIZER (CYLINDRICAL VERTICAL)

Material
304 stainless steel

STEAM STERILIZER (CYLINDRICAL VERTICAL) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About STEAM STERILIZER (CYLINDRICAL VERTICAL)

Applicableto health services, scientific research, agricultural and other units, to thelab equipment, dressings, glassware, solution culture medium to carry outsterilization, also is a necessary test equipment food factory, drinking waterplant to do QS, HACCP certification.

Application range:

There are 6fixed programs and 2 DIY programs according to different sterilization objectssuch as dressings, equipment, tools, rubber, liquid, culture medium, waste,etc.

Safety Features:

Over pressure:- Safety valve can automatically open to release pressure.

Overtemperature: - The system will power off automatically.

Door sensor:- Sensor at door closing position, to check the door status. If door is open,operation will stop.

Anti-dry outfunction: - If water level is too low, system will power off and error codedisplays on screen.

Over current:- Over voltage or electric leakage protection apparatus-air switch.

Door cover:- The door is covered with safety shell made of thermal insulation material,which can protect operator from burning by heat and looks nice.

Technical Features:

Water inletfilter to keep high water quality.

Optionalprinter for recording sterilization data.

Jumbo LCDDisplay screen displays all steps of full process as well as error codes.

Independentquick service window, easy for repairing and maintenance.

Automaticselecting quick or low exhaust to avoid sterilization liquid overflowing.

Sterilizationprograms for dressings, equipment, rubber, culture medium, waste, etc.

Hand wheeltype of quick-open door structure, self-expandable sealing ring, easy operatingand safe.

Completeprocess of filling water, dynamic pulse exhaust, heating, sterilizing, drainingand drying runs automatically.

Adoptingcertain temperature (98-102Â°C) exhaust method and dynamic pulse exhaust methodto empty the cold air inside chamber for ensuring steam saturability.

Inner stainless-steelwater tank for water and steam to circulate inside. Steam dose not exhaustduring sterilization, so as to keep the outside clean and dry Drying function.

Optional stainless-steelbucket and tray.

Standard 1 pcstainless steel tray.

STEAM STERILIZER (CYLINDRICAL VERTICAL) â€“ JEQ-1DV
Capacity	50 L	75 L	100 L	120 L	150 L	200 L
Chamber Size(mm)	Ï†386*514	Ï†386*695	Ï†386*875	Ï†386*1055	Ï† 500*760	Ï† 500*1000
Chamber Material	S30408
Designed Pressure	0.28 Mpa				0.217 Mpa
Designed Temp	134Â°C				138Â°C
Working Pressure	0.28 Mpa				0.217 Mpa
Working Temp.	105 ~ 136Â°C				50 ~ 134Â°C
Temp. Display Accuracy	0.1Â°C
Timing Range	0 ~ 999 min				0 ~ 99 h
Dynamic Pulse	0 ~ 9 times
Exhaust Times	0 ~ 9 times
Dynamic Pulse	105 ~ 136Â°C
Exhaust Temp.	105 ~ 136Â°C
Temp. Holding Range	45 ~ 60Â°C				50 ~ 100Â°C (Programmable)
Consumption	4.4 KW	4.7 KW	5.2 KW	5.2 KW	6 KW
Power Supply	AC 110/220 V Â±10%, 50/60 Hz			360 V, 50 Hz/200 V, 50/60 Hz
SS Basket	1 pc	2 pcs	2 pcs	3 pcs	3 pcs	4 pcs
*External Size(WDH) mm*	640550970	6405501080	6405501280	6405501380	6506501400	6506501700
*Package Size(WDH) mm*	7507451100	7507451240	7507451450	7507451540	8007601530	8007601720
Gross Weight (kg)	70	90	100	125	175	190

STEAM STERILIZER (CYLINDRICAL VERTICAL)

STEAM STERILIZER (CYLINDRICAL VERTICAL)

STEAM STERILIZER (CYLINDRICAL VERTICAL)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in CSSD EQUIPMENT Category

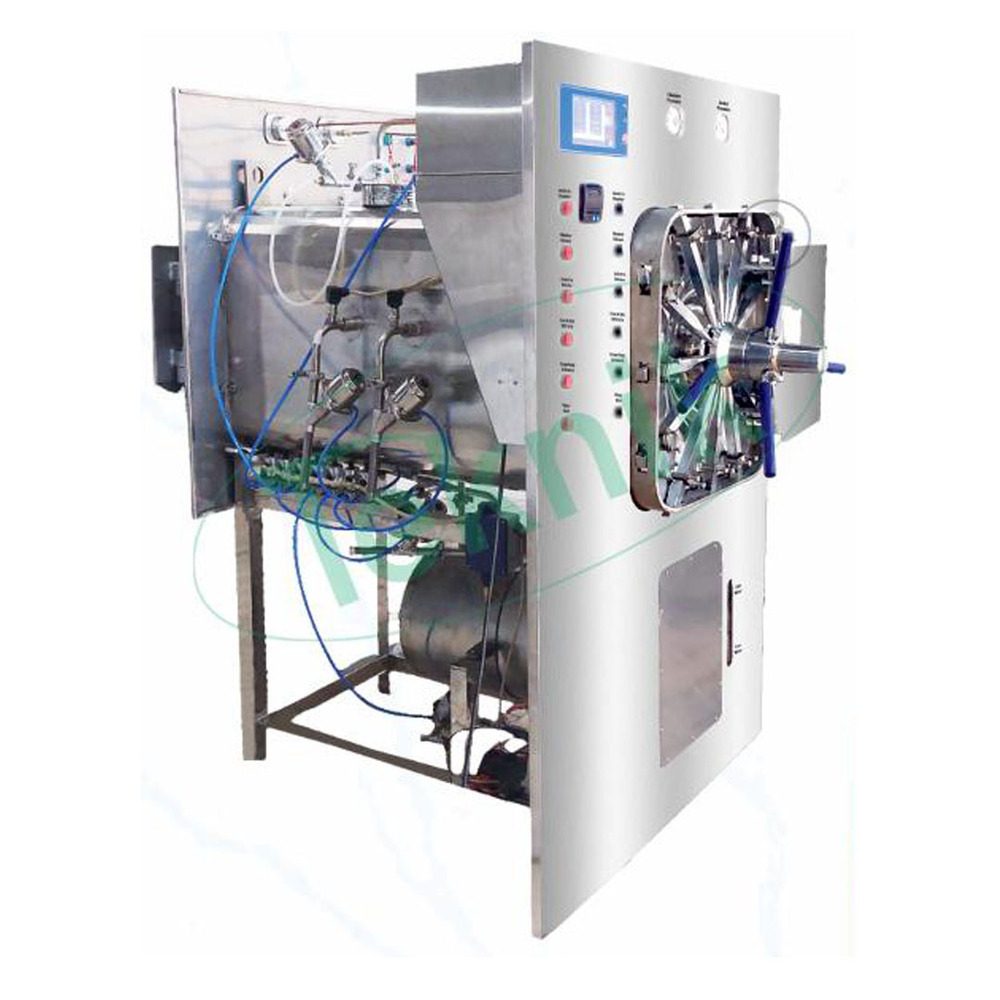

RECTANGULAR STEAM STERILIZER DOUBLE DOOR
