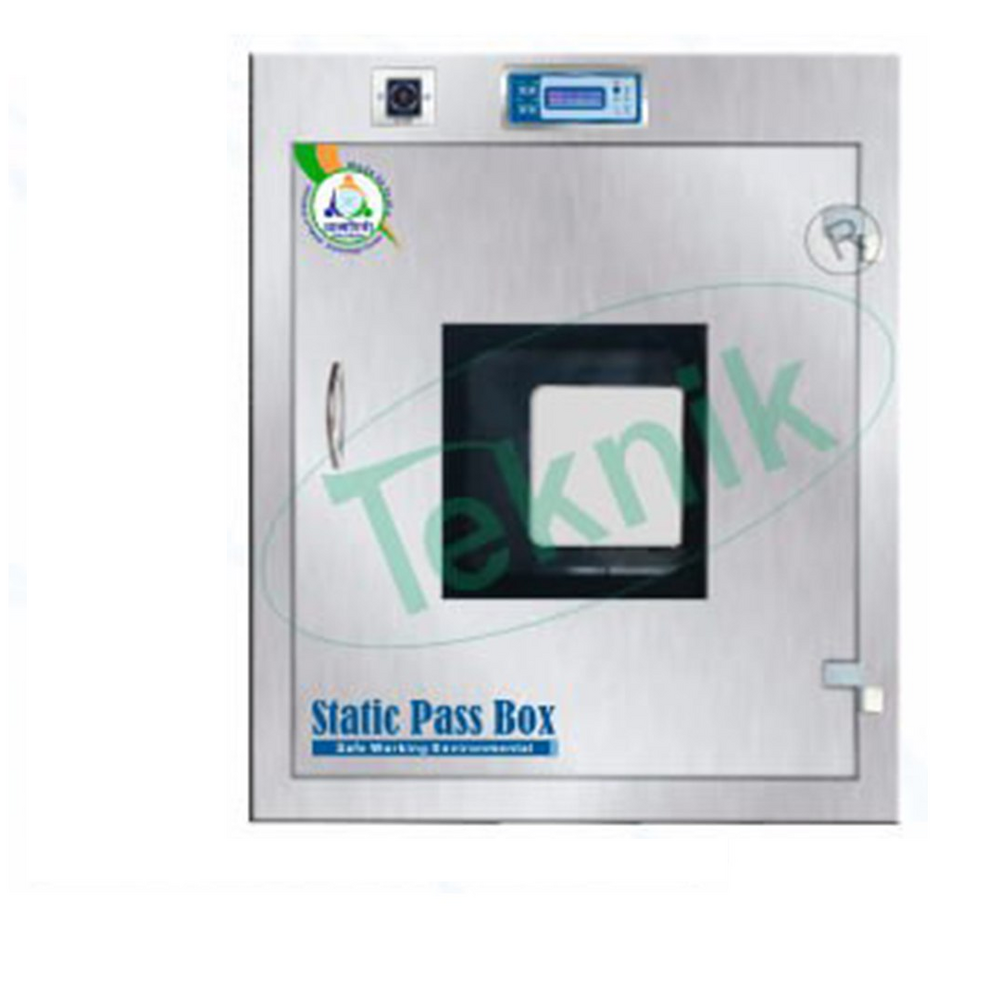

Static Pass Box

Static Pass Box

Static Pass Box

Static Pass Box

Send Inquiry

Request To Call Back

Static Pass Box

Get a Price/Quote

MOQ : 1 Piece

Static Pass Box Specification

Installation Type
Floor / Wall Mounted

Energy Consumption
Nil (No power required for basic model)

Filtration Property
Optional HEPA Filtration

Dust %
Minimal / Controlled environment

Noise Level
< 65 dB

Features
Double-walled Construction, Viewing Glass, Interlocking Doors, UV Germicidal Light (optional)

Color
Stainless Steel Finish

Efficiency (%)
99.97% (with optional HEPA filter)

Hole Size
Standard as per design

Control System
Digital

Maintenance Type
Low maintenance, Easy Clean

Material
SS

Application
CLEAN AIR SYSTEM

Pressure Range
Ambient

Dust
Negligible

Humidity %
Non-humidifying

Equipment Type
Static Pass Box

Filters
Optional HEPA Filter / UV lamp

Automatic Grade
Manual

Capacity
Customized / Standard sizes

Dimension (L*W*H)
600 x 600 x 600 mm or as required

Weight
Approx. 35-45 kg

Warranty
1 YEAR

Cleanliness Class
ISO 5 to ISO 8 compatibility

Operating Temp Range
5C to 55C

Internal Finish
Matt/Glossy finish

Door Construction
Flush Type, Heavy Duty Hinges

Inside Shelves
Removable / Adjustable (optional)

Door Interlocking
Mechanical/Electrical interlock as per requirement

UV Light Timer
Built-in (optional)

Viewing Panel Type
Toughened Glass View Panel

Mounting Option
Free Standing/Wall Mounted

Compliance
GMP / cGMP Standards

Static Pass Box Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About Static Pass Box

MTK-5425 Itis widely used in the place where the clean air is needed, such as microtechnology, biological laboratory, pharmaceutical factory, hospital, foodprocessing industry, LCD, electronic factory.

Pass box isused to transfer goods between rooms of different clean levels of clean room.It can reduce times of opening door, prevent the air convection betweendifferent rooms and minimize the pollution extent.

Model: MTK-5425

Externalsize (W*D*H) mm: 660*570*1000

Internalsize (W*D*H) mm: 500*500*500

Material: 304Stainless steel

Interlock: Electronical

UV Lamp: 8W*1

HEPA Filter:Efficiency 99.999% at 0.3um

Clean airspeed: 0.360.54m/s

GrossWeight(Kg): 80

Packing Size(W*D*H)mm: 780*690*1190

Superior Construction & Hygiene

This pass box is manufactured from high-grade stainless steel with double-walled construction, ensuring exceptional durability and easy cleaning. The flush-type doors, heavy-duty hinges, and toughened glass viewing panel allow seamless transfer of materials while maintaining a controlled and contaminant-free environment.

Flexible Installation & Operation

The pass box can be either wall-mounted or installed as a free-standing unit, suiting various facility requirements. Its mechanical or electrical door interlock ensures that only one door can open at a time, maximizing safety. With manual operation and digital controls, it supports both standard and customized capacities.

Customizable for Advanced Cleanrooms

Options such as removable/adjustable shelves, built-in UV lamps, and HEPA filters enable tailoring the pass box to meet specific application needs. The unit supports ISO 5 to ISO 8 cleanrooms and complies with GMP and cGMP standards, making it ideal for stringent regulatory industries.

FAQ's of Static Pass Box:

Q: How does the toughened glass view panel benefit cleanroom operations?

A: The toughened glass view panel provides operators with clear visibility of materials inside the pass box without opening the doors, minimizing air contamination risks and supporting SOP compliance in cleanroom environments.

Q: What types of door interlocking systems are available, and how do they function?

A: The pass box offers both mechanical and electrical interlocking systems, which prevent both doors from opening simultaneously. This ensures that the cleanroom environment remains protected from external contaminants during material transfer.

Q: When is it advisable to use the optional HEPA filtration and UV light features?

A: Optional HEPA filtration is recommended for processes requiring maximum particulate control, achieving up to 99.97% filtration efficiency. The UV germicidal lamp is useful for facilities needing an additional layer of disinfection, and can be controlled with a built-in timer.

Q: Where can the static pass box be installed and what are the mounting options?

A: The pass box can be installed as a free-standing unit or mounted on the wall, depending on space and process requirements of the cleanroom or laboratory facility.

Q: What process should be followed for cleaning and maintaining the pass box?

A: Routine cleaning with compatible disinfectants and periodic checks of interlock systems and optional components (such as HEPA filters or UV lamps) ensure low maintenance and reliable performance. The stainless steel finish offers easy cleaning and resistance to most chemicals.

Q: What advantages does the double-walled construction provide?

A: Double-walled stainless steel construction adds structural strength, improves insulation, and enhances cleanliness by reducing external surface contamination, making it suitable for rigorous cleanroom conditions.

Q: Who should consider using this static pass box and what industries is it suitable for?

A: Manufacturers and facilities in pharmaceuticals, biotech, semiconductors, and research should consider this pass box. It's specifically designed for clean air systems where GMP/cGMP compliance and minimal contamination are critical.
