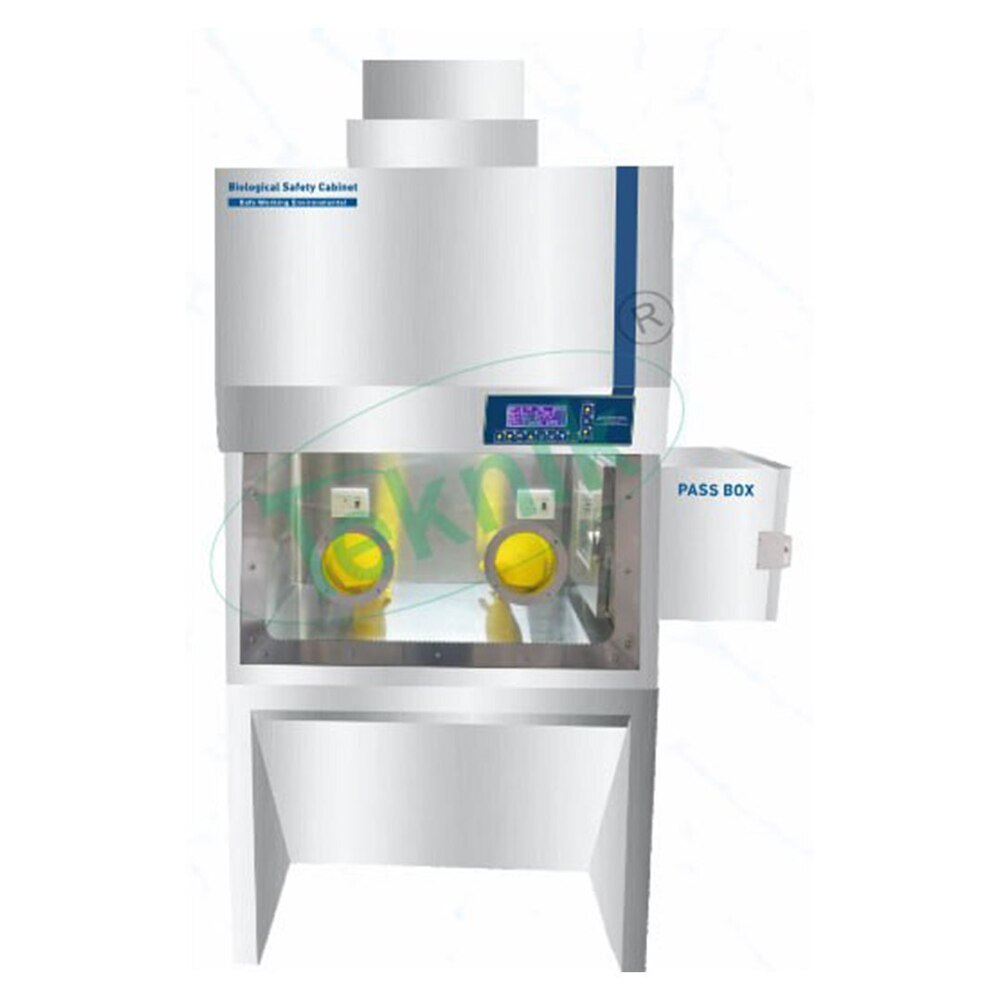

Biological Safety Cabinet Class III
Biological Safety Cabinet Class III
Biological Safety Cabinet Class III
Biological Safety Cabinet Class III
Biological Safety Cabinet Class III
Biological Safety Cabinet Class III

Biological Safety Cabinet Class III

MOQ : 1 Piece

Biological Safety Cabinet Class III Specification

  • Connectivity Type
  • Remote alarm output (optional)
  • Filtration Property
  • Double HEPA with exhaust decontamination
  • Control System
  • Digital
  • Color
  • Matt finish (white/grey)
  • Dust %
  • 0.05
  • Maintenance Type
  • Front-access service ports, easy filter replaceable
  • Energy Consumption
  • Low (<250W)
  • Flow Rate
  • 0.45 m/s (90 fpm), ISO 14644-1 compliant
  • Noise Level
  • 65 dB(A)
  • Pressure Range
  • Positive pressure plenum leak-tested to <0.0006 inch water gauge
  • Frequency
  • 50 Hz
  • Application
  • CLEAN AIR SYSTEM
  • Features
  • Airtight construction, leak-proof, chemical resistant; gas-tight glove access; pass box with interlock; UV light; front window
  • Output
  • HEPA-filtered sterile air
  • Humidity %
  • Up to 85% RH (non-condensing)
  • Dust
  • Particulate containment < 5 g/m3
  • Efficiency (%)
  • 99.99 (0.3 micron HEPA filtration)
  • Vaccum Range
  • -80 kPa to -90 kPa
  • Ventilation
  • Ducted exhaust, Negative pressure full work area
  • Hole Size
  • Glove ports: 8 inch dia
  • Material
  • Stainless Steel 304 (External and Work Area)
  • Installation Type
  • Floor-mounted/Standalone
  • Filters
  • Primary & exhaust HEPA (99.99% at 0.3 m), Pre-Filter
  • Automatic Grade
  • Fully Automatic (Gas-tight)
  • Capacity
  • Standard: 4ft (customizable models available)
  • Power
  • 230 W
  • Voltage
  • 220-240 V AC, 50 Hz
  • Dimension (L*W*H)
  • 1200 x 700 x 900 mm (varies by model)
  • Weight
  • Approx. 180 kg
  • Warranty
  • 1 YEAR
  • Surface Cleanability
  • Smooth radius corners, easy to disinfect
  • Decontamination Methods
  • Vaporized H2O2/chemical spray compatible
  • Glove Port Configuration
  • Dual (2) glove ports standard - custom ports on request
  • Glove Type and Material
  • Butyl rubber gloves, gas-tight, replaceable panel mount
  • Exhaust Type
  • Duct port with optional exhaust HEPA filter box
  • Display
  • LCD touch screen system monitor
  • Pass Box Specification
  • Double-door interlocked pass-through, UV decontamination
  • Power Plug Type
  • International standard plug with surge protection
  • Insulation
  • Thermal and acoustic insulation panels
  • Safety Interlocks
  • Door and pass-box interlocks; power failure alarm; filter clog indicator
  • Airflow Pattern
  • Total exhaust system; negative-pressure chamber surrounds workspace
  • Lighting
  • LED interior lighting 800 Lux
  • Equipment Type
  • Biological Safety Cabinet Class III
  • Mobility
  • Heavy-duty lockable castors (optional)


Biological Safety Cabinet Class III Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


About Biological Safety Cabinet Class III

JCA-021A

TeknikBiological Safety Cabinet Class III provides a physical barrier betweenbiological agents and personanel.

It isdesigned to work with level 4 pathogens.

It involvesa gas tight chamber with complete negative pressure inside and pair of gloves inoperation area which prevents direct contact with the hazardous materials.

The airflowis maintained by a dedicated exterior exhaust system.



Unmatched Biosafety and Sterile Performance

Engineered for top-tier containment, this Class III Biological Safety Cabinet guarantees operator and product safety. Its dual HEPA filtration, negative-pressure design, and leak-tested construction deliver consistent ISO 14644-1 compliant sterile air, protecting both sample and user from biological hazards. Gas-tight, chemical-resistant stainless steel surfaces ensure long-lasting performance in demanding environments.


Smart Control and Easy Maintenance

Equipped with an advanced LCD touch screen, the cabinet enables seamless monitoring and control of critical parameters. Features like door and pass-box interlocks, filter clog indicators, and front-access service ports simplify maintenance. The energy-efficient system and lockable heavy-duty castors (optional) promote practical operation and mobility in laboratory and industrial settings.

FAQ's of Biological Safety Cabinet Class III:


Q: How does the gas-tight design ensure user and environmental safety?

A: The cabinet's gas-tight construction, along with negative-pressure airflow, dual HEPA filtration, and airtight butyl rubber glove ports, creates a secure barrier against hazardous biological agents. Leak-tested to stringent standards, this design prevents contamination of both personnel and surroundings during operation.

Q: What is the process for decontaminating the pass-through box and internal workspace?

A: UV decontamination inside the double-door interlocked pass box allows safe sterilization of transferred materials. The main chamber is compatible with vaporized hydrogen peroxide or chemical spraying, ensuring thorough decontamination of internal surfaces before and after procedures.

Q: When should filters be replaced, and how will I know when maintenance is required?

A: Filter replacement intervals depend on usage intensity, but the integrated digital control system includes a filter clog indicator and service alerts, notifying users when filter maintenance or replacement is necessary. Easy front-access ports streamline the maintenance process.

Q: Where can this cabinet be installed, and is mobility an option?

A: Designed for floor-mounted or standalone installation, the cabinet's heavy-duty castors (optional) enable easy movement within laboratories or cleanrooms. Its compact, customizable dimensions and standard international power compatibility allow tailored placement to suit diverse workspaces.

Q: What are the operational benefits of the LCD touch screen system monitor?

A: The LCD touch screen provides real-time monitoring and accurate control of cabinet parameters such as airflow rates, filter status, and power supply. It enhances user experience by simplifying cabinet operation, ensuring compliance with rigorous safety protocols, and minimizing human error.

Q: How is the glove port configuration adaptable for specific applications?

A: Standard cabinets are equipped with two 8-inch glove ports, each fitted with gas-tight, replaceable butyl rubber gloves. Custom configurations for additional ports are available on request, supporting unique workflow or ergonomic requirements.
