Load Frames .

Get a Price/Quote

MOQ : 1 Piece

Load Frames . Specification

Core Components
Motor, Control Panel, Lead Screw

Temperature Range
Ambient Celsius (oC)

Frequency
50 Hz Hertz (HZ)

Measurement Range
0 50 kN

Product Type
Load Frames

Application
Soil Testing Equipments

Capacity
50 kN Pcs/hr

Model No

Accuracy
1% %

Usage
Soil Testing Equipments

Voltage
220V / 230V Volt (v)

Feature
Single / Dual Speed Selection

Power Source
Electric

Material
Soil Testing Equipments

Automation Grade
Semi Automatic

Equipment Materials
Mild Steel/ Stainless Steel

Type
Motorized

Display Type
Digital

Dimension (L*W*H)
600 x 450 x 1200 mm Millimeter (mm)

Weight
90 kg (approx.) Kilograms (kg)

Fixture Compatibility
Suitable for Triaxial & CBR Test

Operation Mode
Manual / Automatic

Testing Standards
IS, ASTM, BS Standards

Speed
1.25 mm/min - 12.5 mm/min

Finish
Powder Coated

Safety Features
Overload Protection, Limit Switch

Display Resolution
0.01 kN

Environment
Laboratory Use

Control System
Microprocessor based digital control

Load Frames . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Load Frames .

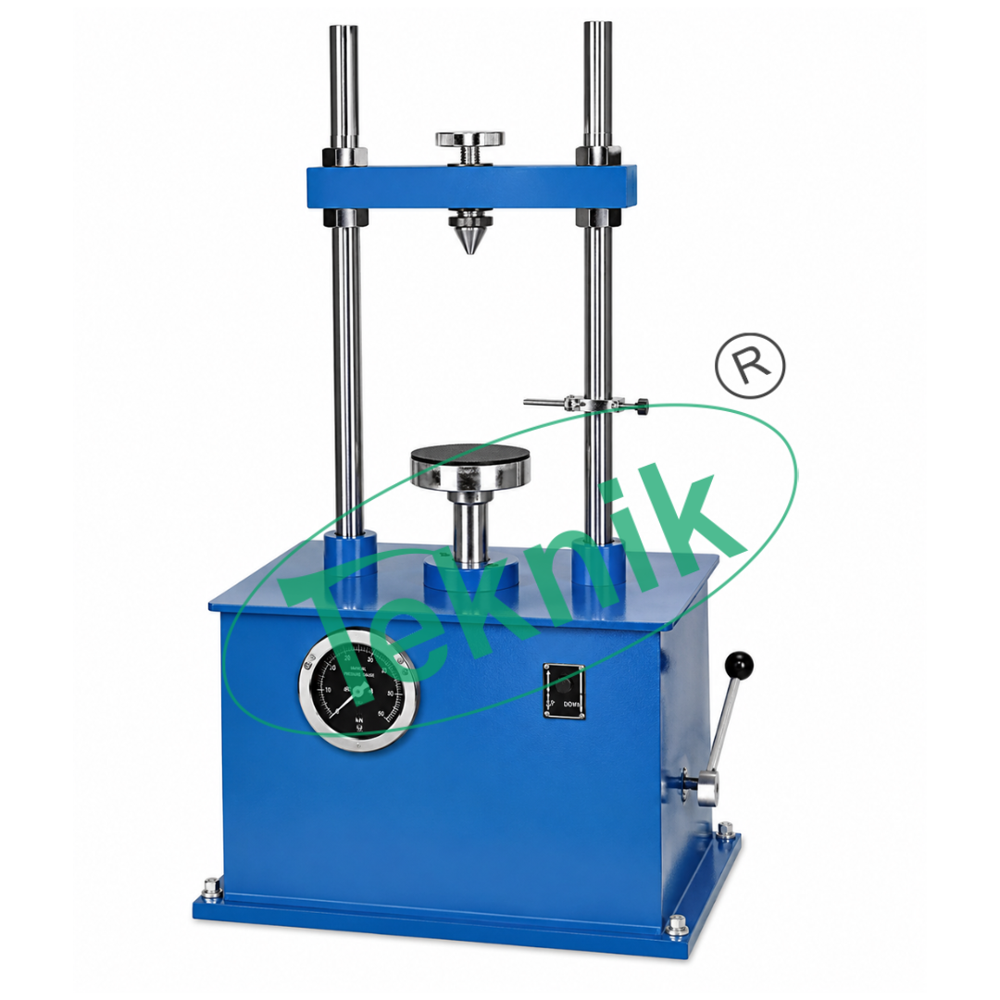

Load Frames:

Load Frame Mechanical, 50 kN, hand operated
Load Frame, 50 kN Motorised, single speed (Bench Type)
Load Frame, 50 kN Motorised, but Housing Type Body (Covered)
Load Frame, 50 kN Motorised, 3 speed (Bench Type)
Load Frame, 50 kN Motorised, 6 speed (Bench Type)
Load Frame, 50 kN Motorised, 8 speed (Bench Type)
Load Frame, 50 kN Motorised, 30 speed (Bench Type)
Load Frames are used to apply load on the test specimen. The capacity and speed depends on the requirement of a particular test. Load Frames are used in C.B.R. Triaxial, Unconfined Compression Test etc.

Advanced Control and Precision

Featuring a microprocessor-based digital system, the Load Frame delivers highly accurate force measurement with a 0.01 kN digital display resolution. Dual-speed selection ensures flexibility for varied soil testing procedures, consistently maintaining measurement accuracy within 1%. Designed for demanding laboratory applications, the frame operates smoothly at a frequency of 50 Hz and connects to a standard 220V/230V electric source.

Robust Safety and Operation

Safety is at the forefront of the Load Frames design, equipped with overload protection and limit switches for secure operation during both manual and automatic modes. The powder-coated finish and sturdy construction using mild steel or stainless steel offer reliable protection against laboratory conditions. A user-friendly control panel streamlines operation and monitoring for technicians.

Broad Application and Fixture Compatibility

This load frame supports a wide measurement range of 050 kN and accommodates fixtures for triaxial and CBR soil testing, expanding its utility in geotechnical analysis sectors. Its ambient temperature operation and compact dimensions (600 x 450 x 1200 mm) make it suitable for various laboratory settings. Whether you are a distributor, exporter, manufacturer, or supplier in India, the offers unmatched efficiency and adaptability.

FAQs of Load Frames:

Q: How do I set the speed on the Load Frame?

A: The Load Frame enables speed selection between 1.25 mm/min and 12.5 mm/min using its microprocessor-based digital control panel. Simply use the controls to choose your desired speed for accurate soil testing applications.

Q: What testing procedures are compatible with this equipment?

A: This load frame is designed to support triaxial and CBR soil tests, meeting IS, ASTM, and BS standards. It accepts the relevant testing fixtures, ensuring reliable application in various geotechnical investigations.

Q: When should the overload protection feature be checked?

A: It is advisable to inspect the overload protection system before starting each test to ensure safety. Regular checks help prevent damage and maintain optimal operation within the 50 kN measurement capacity.

Q: Where can the Load Frame be installed for best results?

A: For optimal performance and longevity, install the Load Frame in a controlled laboratory environment where ambient temperature is maintained and space accommodates its dimensions (600 x 450 x 1200 mm).

Q: What is the process for switching between manual and automatic operation modes?

A: To switch between manual and automatic modes, use the mode selector on the control panel. Follow the manufacturers instructions to ensure seamless transition without interrupting ongoing tests.

Q: How accurate are the measurements provided by the load frame?

A: The offers high measurement accuracy of 1% within a 050 kN range, with digital display resolution up to 0.01 kN. This performance ensures reliable data for analytical and reporting purposes.

Q: What are the benefits of using a powder-coated, motorized load frame with dual speed selection?

A: A powder-coated finish increases durability, while motorization and dual speed selection enable efficient and flexible testing. These features help laboratories achieve consistent, high-quality results while minimizing maintenance.
