Price 1500.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Load Frame . Specification

Accuracy
1% %

Measurement Range
0-50 kN

Temperature Range
Ambient Celsius (oC)

Core Components
Motor, Gearbox, Load Cell

Material
Mild Steel

Capacity
50 kN Pcs/hr

Usage
Soil Testing Equipments

Application
Soil Testing Equipments

Power Source
Electric

Feature
Rigid Construction, Corrosion Resistant

Voltage
230 V AC Volt (v)

Product Type
Load Frame

Model No

Automation Grade
Semi-Automatic

Frequency
50 Hz Hertz (HZ)

Equipment Materials
Mild Steel

Type
Motorized Load Frame

Display Type
Analog Gauge

Dimension (L*W*H)
800 x 500 x 1200 mm Millimeter (mm)

Weight
Approx. 80 kg Kilograms (kg)

Compatible Tests
CBR, UCS, Triaxial, Marshall Stability

Control
Manual/Automatic Cut-off

Stroke Length
50 mm

Mounting
Floor Standing

Protection Class
IP54

Maximum Speed
1.25 mm/min

Paint Finish
Powder Coated

Load Frame . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cheque, Cash in Advance (CID), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

Load Frame . About

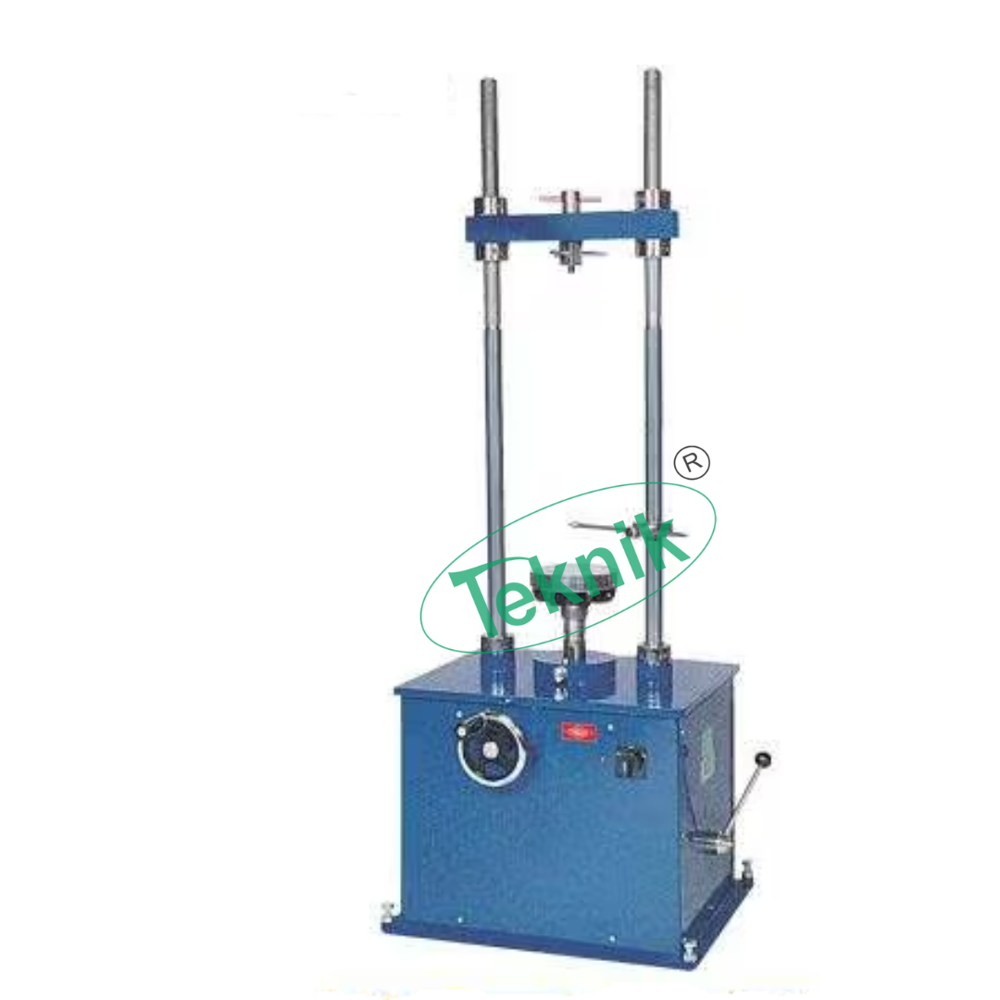

Load Frame

CBR App, motorised bench type load frame.
California Bearing Ratio Apparatus (Motorised).
Similar to above but supplied with bench mounting type 5000kgf. capacity load frame motorized, in place of load frame hand operated. The lead screw of the load frame has a single constant rate of travel of 1.25mm/min.

Salient Features:

Accessories for Laboratory C.B.R. Apparatus :High sensitivity Proving Ring 3000kg. capacity with calibration chart and carrying case.
Dial Gauges 2 Nos.0.01mm x 25mm.Annular metal weight 5 kg. 147mm dia with 53 mm dia. central hole.
Slotted metal weight, 5 kg. 147mm dia with 53 mm dia slot.
Note: Proving Ring of other capacities are also available M.S. Mould, rammer 2.6 & 4.89 kg, 2.5 kg annular & slotted weights, complete but without Proving Ring & Dial Gauge.
Proving Ring for above, 10 kN (With our calibration).
Dial Gauge for above, 0.01 x 25 mm.

Engineered for Precision & Durability

The Load Frame stands out for its rigid construction and corrosion-resistant finish, ensuring longevity and dependable performance. Designed for rigorous laboratory environments, this motorized unit delivers consistent load measurement and withstands heavy-duty usage, supporting a range of soil testing protocols. Its IP54 protection grade adds a layer of safety against dust and moisture, making it adept in various ambient conditions.

Versatile Applications in Soil Testing

Compatible with essential geotechnical procedures such as CBR, UCS, Triaxial, and Marshall Stability tests, the indispensable for civil engineering labs. Its semi-automatic features, coupled with a manual or automatic cut-off, offer researchers flexibility in operation. The analog gauge ensures straightforward, reliable data reading, essential for accurate soil strength and stability assessments.

FAQs of Load Frame:

Q: How does the Load Frame enhance soil testing procedures?

A: The provides precise control over loading speed and force, with a motorized mechanism and 1% measurement accuracy. Its compatibility with various standard tests allows for streamlined and accurate evaluation of soil properties, which is crucial for reliable geotechnical analysis.

Q: What is the typical usage process for the Load Frame?

A: To use, the test specimen is mounted within the frame, and the load is applied via the motorized system at the required speed. Depending on the test method, the operator can select manual or automatic cut-off, and results are monitored using the provided analog gauge display.

Q: When should I use the automatic cut-off feature ?

A: The automatic cut-off feature is recommended for tests requiring precise endpoint determination, such as during maximum load achievement in strength tests. It helps prevent overloading, ensuring consistent and safe test execution.

Q: Where can the Load Frame be installed?

A: With its floor-standing design and ambient temperature operation, the best suited for laboratory environments where geotechnical testing is conducted. Its dimension and weight make it stable and secure for permanent installations.

Q: What materials are used in the construction of the, and why?

A: The constructed from mild steel with a powder-coated finish, contributing to its rigidity and corrosion resistance. This ensures durability and longevity when used in demanding testing environments.

Q: How does the IP54 protection class benefit laboratory use?

A: The IP54 rating protects the load frame from dust ingress and water splashes, making it suitable for varied laboratory conditions and increasing its operational reliability and lifespan.

Q: What are the advantages of using an analog gauge display in soil testing?

A: An analog gauge offers straightforward visualization of applied load, is easy to read during testing, and provides reliable measurements without dependence on digital systems, benefiting laboratory technicians who require immediate feedback.
