Length Comparator

Length Comparator

Send Inquiry

Request To Call Back

Length Comparator

Get a Price/Quote

MOQ : 1 , , Piece

Length Comparator Specification

Product Type
Length Comparator

Temperature Range
5C to 50C

Usage
Soil Testing Equipments

Power Source
Electric

Model No
LC-100

Core Components
Dial Gauge, Base Frame

Voltage
220 V

Capacity
3 Specimens (Standard)

Feature
High Accuracy & Sturdy Construction

Frequency
50 Hz

Accuracy
0.001 mm

Measurement Range
0-12 mm

Automation Grade
Manual

Application
Soil Testing Equipments

Equipment Materials
Mild Steel, Finished with Powder Coating

Type
Length Comparator

Display Type
Dial Gauge

Dimension (L*W*H)
450 mm x 250 mm x 350 mm

Weight
Approx. 25 kg

Clamp Type
Screw Clamp Arrangement

Base Plate Material
Cast Iron

Dial Gauge Graduation
0.001 mm

Optional Accessories
Digital Dial Gauge, Calibration Certificate

Surface Finish
Corrosion Resistant Powder Coating

Number of Specimen Holders
Three

Length Comparator Trade Information

Minimum Order Quantity
1 , , Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Length Comparator

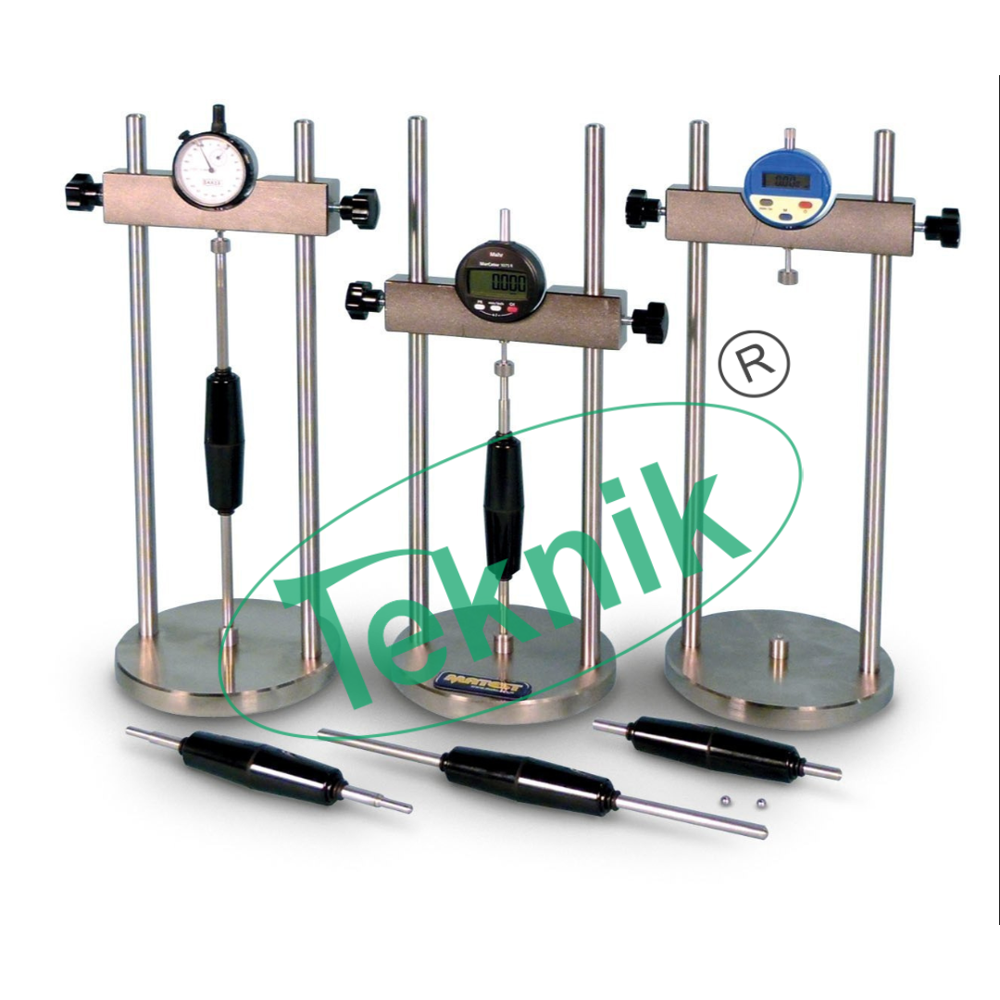

LENGTH COMPARATOR

MICROTEKNIK are Manufacturer and Supplier,Exporter Company in India,Length changes of cement paste

Description:

Metal frame, double-post construction with rust resistant finish.
Anvils: One movable and one stationary; shaped to receive contact points in sample bars.

Precision Measurement for Soil Testing

Experience high-accuracy length comparison for soil specimens with the LC-100 Length Comparator. Its advanced dial gauge ensures precise readings to 0.001 mm, supporting consistent data collection for laboratory analyses. The robust base and corrosion-resistant finish deliver both durability and reliability, making it a trusted choice among professionals.

Built for Laboratory Efficiency

Engineered to facilitate a smooth workflow, this length comparator holds up to three specimens concurrently, allowing for efficient batch testing. The manual screw clamp arrangement provides secure specimen placement, and the powder coated mild steel body withstands frequent laboratory use. Easy integration and optional digital upgrades further boost practicality.

FAQs of Length Comparator:

Q: How is the Length Comparator with Dial Gauge used in soil testing laboratories?

A: The Length Comparator is employed to measure dimensional changes in soil specimens with high precision. Operators place specimens in the holders and use the dial gauge to record length differences during soil consolidation and expansion tests.

Q: What process should be followed to calibrate the LC-100 Length Comparator?

A: Calibration should be performed using standard calibration blocks and referencing the instruments dial readings against known values. A calibration certificate is optionally available to ensure compliance with testing standards.

Q: Where is this length comparator ideally installed, and what are its space requirements?

A: It is designed for laboratory use, requiring a stable bench with at least 450 mm x 250 mm of surface space and adequate room for specimen handling and the manual dial gauge display.

Q: When should optional accessories like the digital dial gauge be considered?

A: Optional digital dial gauges are recommended when higher measurement sensitivity or data logging capability is required, streamlining digital documentation for quality control protocols.

Q: What benefits does the corrosion-resistant powder coating provide?

A: This finish protects the equipment from environmental factors, prolonging its functional lifespan and maintaining measurement accuracy for repeated laboratory use.

Q: How does the screw clamp arrangement ensure specimen stability during testing?

A: The screw clamp system holds specimens securely, preventing unwanted movement and guaranteeing consistent, repeatable measurement outcomes during soil analysis.

Q: What safety and maintenance practices are recommended for this equipment?

A: Routine cleaning, careful specimen handling, and storing the device in a dry, dust-free environment help preserve the devices precision and longevity. Regular functional checks also ensure ongoing reliability.
