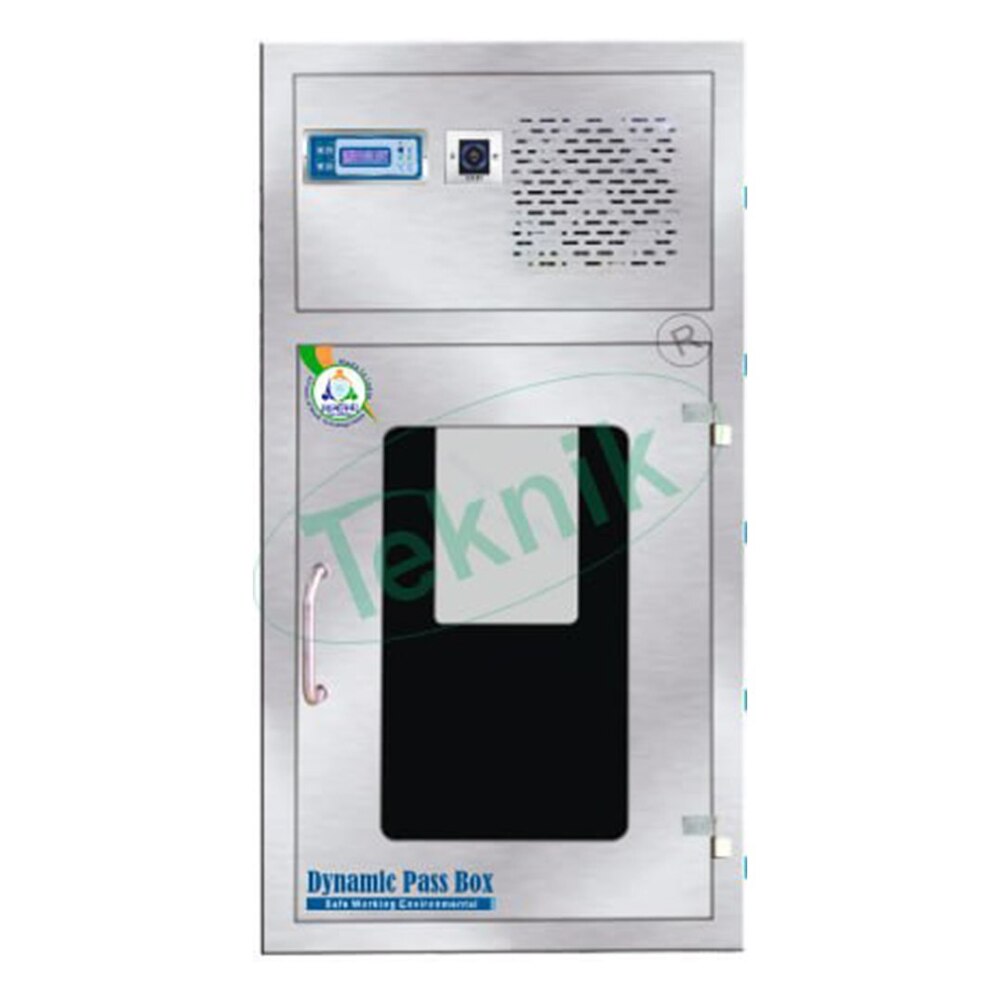

DYNAMIC PASS BOX

DYNAMIC PASS BOX

DYNAMIC PASS BOX

DYNAMIC PASS BOX

Send Inquiry

Request To Call Back

DYNAMIC PASS BOX

Get a Price/Quote

MOQ : 1 Piece

DYNAMIC PASS BOX Specification

Control System
Digital

Efficiency (%)
99.99% at 0.3 micron

Ventilation
Internal Recirculation

Output
Filtered Air

Pressure Range
Positive Pressure (inside pass box)

Noise Level
<65 dB

Installation Type
Floor Mounted/Wall Mounted

Dust
HEPA filtered clean environment

Features
UV Germicidal Lamp, Interlocking Doors, LED indicator, Emergency Alarm

Color
Matte/Silver (as per SS finish)

Flow Rate
0.45 m/s

Connectivity Type
Manual/Automatic

Filters
HEPA & Pre-filter both sides

Application
CLEAN AIR SYSTEM

Material
SS

Energy Consumption
Low

Filtration Property
HEPA Filtration, Pre-filtration

Equipment Type
Clean Room Pass Box

Dust %
99.99% (with HEPA)

Hole Size
Custom/As Per Requirement

Frequency
50/60 Hz

Humidity %
Ideal: 60-65%

Maintenance Type
Low Maintenance

Automatic Grade
Automatic

Capacity
Custom/As Required

Power
230V AC, Single Phase

Voltage
230 Volts

Dimension (L*W*H)
600 x 600 x 600 mm

Weight
Approx. 60-80 Kg

Warranty
1 YEAR

Air Cleanness Level
Class 100 in work area

Service Access
Front/Side Panel

Pass Box Type
Dynamic (with built-in blower and filtration)

Viewing Glass
Toughened Glass Fronts

UV Lamp
Provided with UV Timer Function

Surface Finish
Matt/Mirror Polished

Operation Indicator
LED/Buzzer for Door Status

Safety
Door Interlocks to prevent simultaneous opening

Door Mechanism
Swing Type with Door Gaskets

Illumination
LED Lights

Interlocking System
Electro-mechanical / Electronic Interlock System

DYNAMIC PASS BOX Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DYNAMIC PASS BOX

MTK-5425H Itis widely used in the place where the clean air is needed, such as microtechnology, biological laboratory, pharmaceutical factory, hospital, foodprocessing industry, LCD, electronic factory.

Pass box isused to transfer goods between rooms of different clean levels of clean room.It can reduce times of opening door, prevent the air convection betweendifferent rooms and minimize the pollution extent.

Model: MTK-5425

Externalsize (W*D*H) mm: 660*570*1000

Internalsize (W*D*H) mm: 500*500*500

Material: 304Stainless steel

Interlock: Electronical

UV Lamp: 8W*1

HEPA Filter:Efficiency 99.999% at 0.3um

Clean airspeed: 0.360.54m/s

GrossWeight(Kg): 80

Packing Size(W*D*H)mm: 780*690*1190

Advanced Interlock and UV Security

Engineered with an electro-mechanical/electronic interlocking system, our dynamic pass box prevents simultaneous door openings, safeguarding areas from contamination. For enhanced sterilization, the built-in UV lamp with timer thoroughly disinfects items within the pass box without posing risks to nearby personnel or materials.

Exceptional Clean Air Assurance

Achieve Class 100 air cleanliness with our dynamic pass box, featuring a robust blower system, HEPA, and pre-filters on both sides to maintain a 99.99% efficiency against particles as small as 0.3 microns. Internal recirculation ensures air remains pure, while the positive pressure environment prevents dust ingress during operation.

User-Friendly Design and Customization

Constructed from durable stainless steel, the pass box sports a sleek, matt or mirror finish and toughened glass viewing panels. Doors operate smoothly with swing-type mechanisms and secure gaskets. The digital control system, LED status indicators, UV timer, and emergency alarm offer intuitive operation and enhanced safety. Custom sizes and installation options are available upon request.

FAQ's of DYNAMIC PASS BOX:

Q: How does the interlocking system in the Dynamic Pass Box ensure safety during operation?

A: The electro-mechanical or electronic interlocking system in the Dynamic Pass Box guarantees that both doors cannot be opened simultaneously. This prevents contamination between clean and non-clean areas, maintaining the integrity of controlled environments during material transfer.

Q: What is the process for sterilizing items inside the pass box?

A: Sterilization is achieved using the built-in UV germicidal lamp, which can be activated through the UV timer function. Place items inside, close the door, and set the timer; the UV lamp disinfects the interior and its contents, ensuring safe material handling in clean rooms.

Q: When should the filters in the pass box be replaced or maintained?

A: Filters (HEPA and pre-filter) should be inspected and maintained according to the usage frequency and air quality standards of your facility. Typically, scheduled inspection every 6-12 months is recommended, but this can vary based on operational hours and contamination load.

Q: Where can the pass box be mounted or installed?

A: The Dynamic Pass Box is designed for versatility and can be installed in cleanroom walls or floors, depending on architectural requirements and workflow optimization. Installation is straightforward and can be customized to suit your facility's dimensions and needs.

Q: What are the main benefits of using a dynamic pass box over a static one?

A: A dynamic pass box features built-in air circulation via blower and HEPA filtration, ensuring Class 100 ultraclean air and minimal particulate transfer. This makes it superior for environments where additional air cleanness and cross-contamination control are essential, compared to static pass boxes.

Q: How is the operating status of the pass box indicated to users?

A: Operating status is clearly displayed via LED indicators and buzzer alerts for each door. This ensures users are always aware when doors are securely closed or if an operation is in progress, enhancing safety and process transparency.

Q: What maintenance and energy requirements are associated with this equipment?

A: The Dynamic Pass Box is engineered for low maintenance, thanks to its robust stainless steel build and efficient filtration system. It operates on standard 230V AC power, consuming minimal energy during operation, making it both reliable and cost-effective for facilities.
