Concrete Permeability
Concrete Permeability
images Send Inquiry
Request To Call Back

Concrete Permeability

Price 100 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

Concrete Permeability Specification

  • Application
  • Soil Testing Equipments
  • Temperature Range
  • Ambient
  • Product Type
  • Concrete Permeability
  • Measurement Range
  • Permeability coefficient measurement
  • Automation Grade
  • Manual
  • Model No
  • CPI-3
  • Accuracy
  • 1% fsd
  • Feature
  • Corrosion resistant, robust construction
  • Frequency
  • 50 Hz
  • Core Components
  • Chamber, pressure gauge, metallic base, pressure line
  • Voltage
  • 220 V AC
  • Power Source
  • Electric
  • Capacity
  • 3 cell apparatus
  • Usage
  • Soil Testing Equipments
  • Equipment Materials
  • Stainless steel chamber, metallic base
  • Type
  • Concrete Permeability Tester
  • Display Type
  • Analog
  • Dimension (L*W*H)
  • 600 x 500 x 800 mm
  • Weight
  • Approx 35 Kg


Concrete Permeability Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


About Concrete Permeability

Concrete Permeability

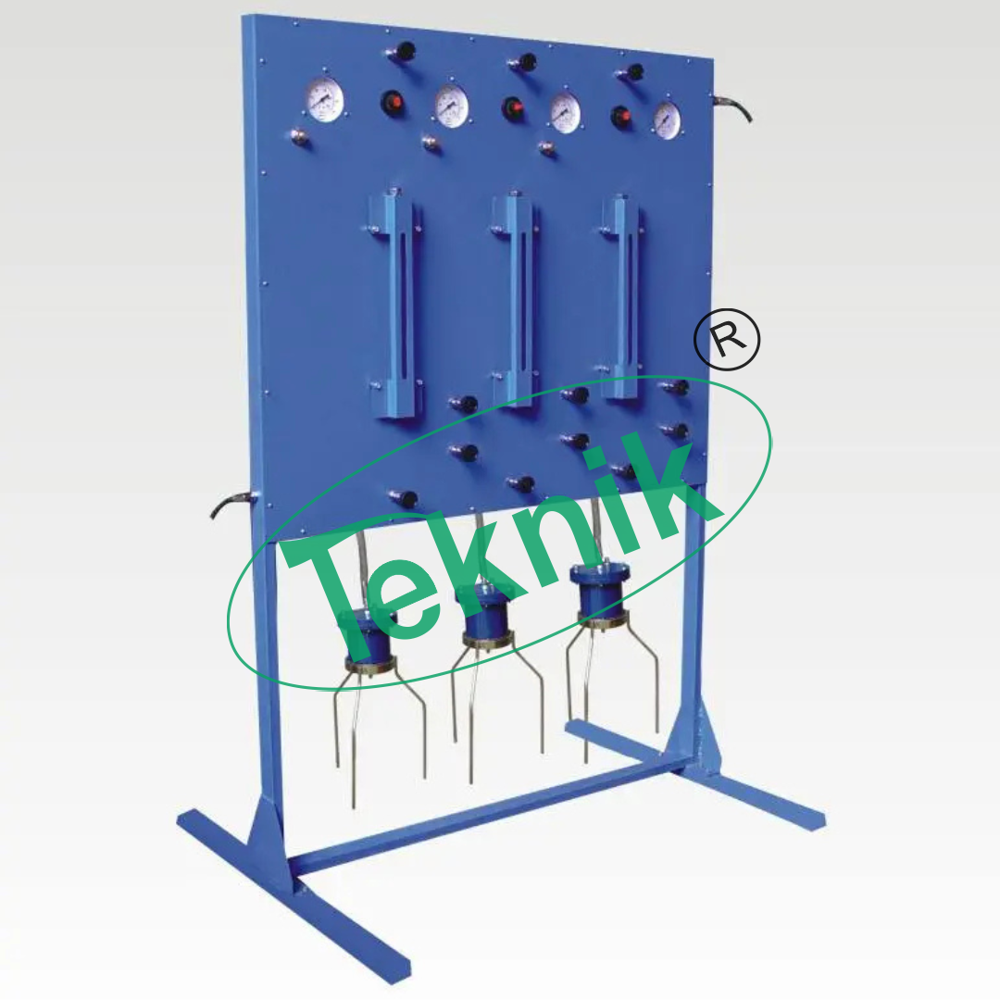

Three pressure gauges for indicating pressure in each cell are supplied apart from the main pressure gauge which indicates pressure in chamber


 Features


  • Available for three samples of size 150mm dia X 150mm high.
  • Available for three samples of size 100mm dia X 100mm high.


Accessories



  • Compressor with pressure gauge 0-20 kg/cm sq. with automatic pressure valve and pressure rubber hose.
  • Suitable for 440 volts A.C. three phase.
  • Specimen casting mould C.I. for 100mm dia X 100 mm high cylinders, Specimen casting mould C.I. for 150mm dia X 10mm high cylinders, Specimen casting mould C.I. for 150mm cubes, Blow stove 1/2 litre capacity, Resin, Bees Wax, Wire brush, Chissel, Spare glass cylinder 500cc capacity



a) Complete with 150mm Gun Metal mould, Single cell

b) Complete with 150mm Gun Metal mould, Three cell

Compressor for above, if required, pressure upto 300 PSI (Double Cylinder)

Superior Construction for Reliable Testing

Crafted from stainless steel with a metallic base, the Concrete Permeability Tester ensures durability and resistance to corrosion. Its robust structure makes it ideal for frequent laboratory use. The polished finish not only enhances longevity but also supports easy cleaning, ensuring a dependable performance in diverse testing environments.


Accurate Measurement and Easy Operation

Equipped with an analog pressure gauge ranging from 0 to 15 kg/cm, the device provides precise evaluations of concrete permeability. The manual automation grade allows for greater control during testing, while the ambient temperature range supports consistent results. Its three-cell chamber accommodates multiple specimens for simultaneous assessments.


Complies with International Test Standards

Designed in accordance with IS:3085 and ASTM C1202, this tester assures reliable and standardized results, supporting laboratories and field engineers in their quality assurance protocols. It is suitable for applications in soil and concrete sample analysis, catering to both local and international project requirements.

FAQs of Concrete Permeability:


Q: How is concrete permeability measured using the CPI-3 tester?

A: Concrete permeability is measured by placing standard-size specimens into the stainless steel chamber and applying water pressure up to 15 kg/cm through the analog pressure gauge. The device monitors the flow of water, enabling calculation of the permeability coefficient as per IS:3085 or ASTM C1202 standards.

Q: What benefits does the CPI-3 Concrete Permeability Tester offer to laboratories?

A: This tester provides accurate, repeatable results with 1% full scale deflection accuracy. Its robust, corrosion-resistant construction ensures durability, and the three-cell apparatus allows simultaneous testing of multiple samples, increasing lab efficiency.

Q: When should you use the CPI-3 tester for soil and concrete analysis?

A: The CPI-3 tester is recommended for use during quality control, research, and compliance testing of concrete in construction projects. It is especially useful when evaluating durability and resistance to water penetration as required by project specifications or standards.

Q: Where is the appropriate place to operate the Concrete Permeability Tester?

A: The equipment is designed for laboratories or testing centers focused on soil and concrete analysis. Its dimensions (600 x 500 x 800 mm) and 35 kg weight make it suitable for benchtop or dedicated lab areas with access to 220 V AC power.

Q: What is the process for setting up and operating the CPI-3 permeability tester?

A: To operate the CPI-3 tester, prepare the specimens (100 mm diameter x 50 mm height), place them in the chamber, and connect the pressure lines. Set the desired pressure using the analog gauge, and follow the specified test protocol for permeability measurement according to IS:3085 or ASTM C1202.

Q: How does the corrosion-resistant feature benefit the user?

A: The corrosion-resistant, stainless steel construction ensures long-term performance even with continuous exposure to water and pressure, reducing maintenance needs and ensuring consistent, accurate results over time.
