Plug-in Transformer .

Price 200.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units, Unit

Plug-in Transformer . Specification

Accuracy
Electrical output accuracy 3% %

Model No

Automation Grade
Manual

Application
General lab equipments

Temperature Range
-10 C to 50 C Celsius (oC)

Material
Mild Steel

Product Type
Removable Transformer

Frequency
50 Hz Hertz (HZ)

Voltage
Input: 220V AC, Output: 12V/500mA or as specified Volt (v)

Warranty
1 Year

Core Components
Copper coil, Ferrite/Iron core, ABS case

Feature
Compact, portable, over-current protection

Usage
General lab equipments

Color
Black

Capacity
Available in various ratings such as 12V/500mA, 12V/1A etc. Pcs/hr

Power Source
AC mains

Equipment Materials
ABS plastic body, copper winding

Type
Plug-in, Removable Transformer

Display Type
No Display

Dimension (L*W*H)
Approx. 70 x 50 x 40 mm Millimeter (mm)

Weight
Approx. 200-400 grams (depends on model) Grams (g)

Insulation Class
Class B

Output Connector Type
Pin/Terminal/Customized

Mounting
Wall plug-in

Short Circuit Protection
Yes

Operating Humidity
20% - 85% RH, non-condensing

Color
Black/White/Custom

Primary to Secondary Isolation
Available, as per standards

Cooling Method
Natural air cooled

Plug-in Transformer . Trade Information

Minimum Order Quantity
10 Units, Unit

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Plug-in Transformer .

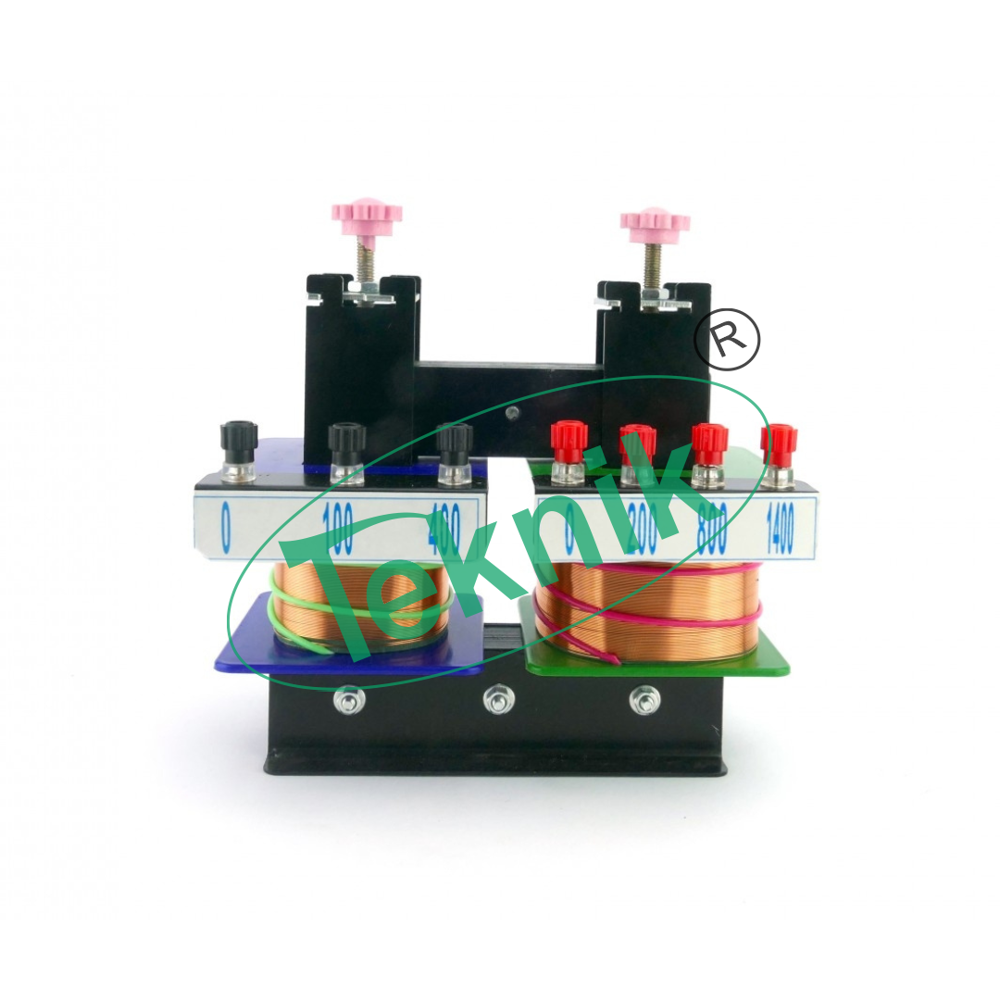

Removable Transformer

Core section 30 x 30 mm
Coils protected by a plastic housing
Safety banana sockets 4 mm
Number of turns: 300 Spiers
Inductance: 2.5 mH-
Resistance: 1.2- Max. Current: 5A

Removable Transformer (MTRT-20B)

Core section 30 x 30 mm
Coils protected by a plastic housing
Safety banana sockets 4 mm
Number of turns: 600 Spins
Inductance: 10 Mh
Resistance: 3
Max. Current: 2A

Removable Transformer (MTRT-20C)

Core section 30 x 30 mm
Coils protected by a plastic housing
Safety banana sockets 4 mm
Number of turns: 1200 Spiers
Inductance: 12 mH
Resistance: 3
Max. Current: 1A

Efficient Power Conversion for Lab Equipment

Engineered for versatility, this plug-in transformer delivers consistent output for a broad range of laboratory devices. Its core componentsincluding copper coils and ferrite iron coresensure durability and accurate electrical performance. Simple wall plug-in mounting makes installation straightforward, while the transformers compact design supports easy portability.

Reliable Safety and Protection Features

Safety is paramount, with short circuit and over-current protection integrated into the transformers design. Electrical isolation between primary and secondary windings meets industry standards, minimizing risk during operation. Housed in a tough ABS plastic case, this device performs reliably within specified temperature and humidity conditions.

FAQs of Plug-in Transformer:

Q: How do I install the plug-in transformer for laboratory equipment?

A: Installation is simplemount the transformer by plugging it into a wall outlet. The output connector type can be pin, terminal, or customized according to your equipments requirements. Ensure secure connections for optimal performance.

Q: What safety features are included in the product?

A: The transformer is equipped with built-in short circuit protection, over-current protection, and complete primary-to-secondary isolation as per established standards, ensuring safe and reliable device operation in laboratory environments.

Q: When should I consider replacing the transformer?

A: Replacement is recommended if you notice irregular voltage output, physical damage to the ABS casing, or consistent tripping of protection circuitry. Regular inspections can help maintain safe and accurate operation.

Q: Where is the plug-in transformer ideally used?

A: This model is tailored for general laboratory equipment applications across research, science, and technical labs. It can be supplied directly from major distributors, exporters, manufacturers, and suppliers throughout India.

Q: What process does the transformer use for cooling and isolation?

A: Cooling is achieved naturally via air circulation, eliminating the need for fans. Electrical isolation between input and output is maintained using robust copper windings and ferrite or iron cores, complying with safety standards.

Q: How does the transformer benefit laboratory operations?

A: It offers stable, accurate DC output (3% accuracy), reliable protection features, and flexible customization options for connectors, ratings, and colors. The transformers compact, portable design enhances convenience and space efficiency in lab settings.
