OPERATION TABLE ORDINARY PAEDIATRIC

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OPERATION TABLE ORDINARY PAEDIATRIC Specification

Application
medical

Use
medical

Accuracy
99.9 %

Material
S S/ M S

Product Type
OPERATION TABLE ORDINARY PAEDIATRIC

Warranty
1 YEAR

Condition
NEW

About OPERATION TABLE ORDINARY PAEDIATRIC

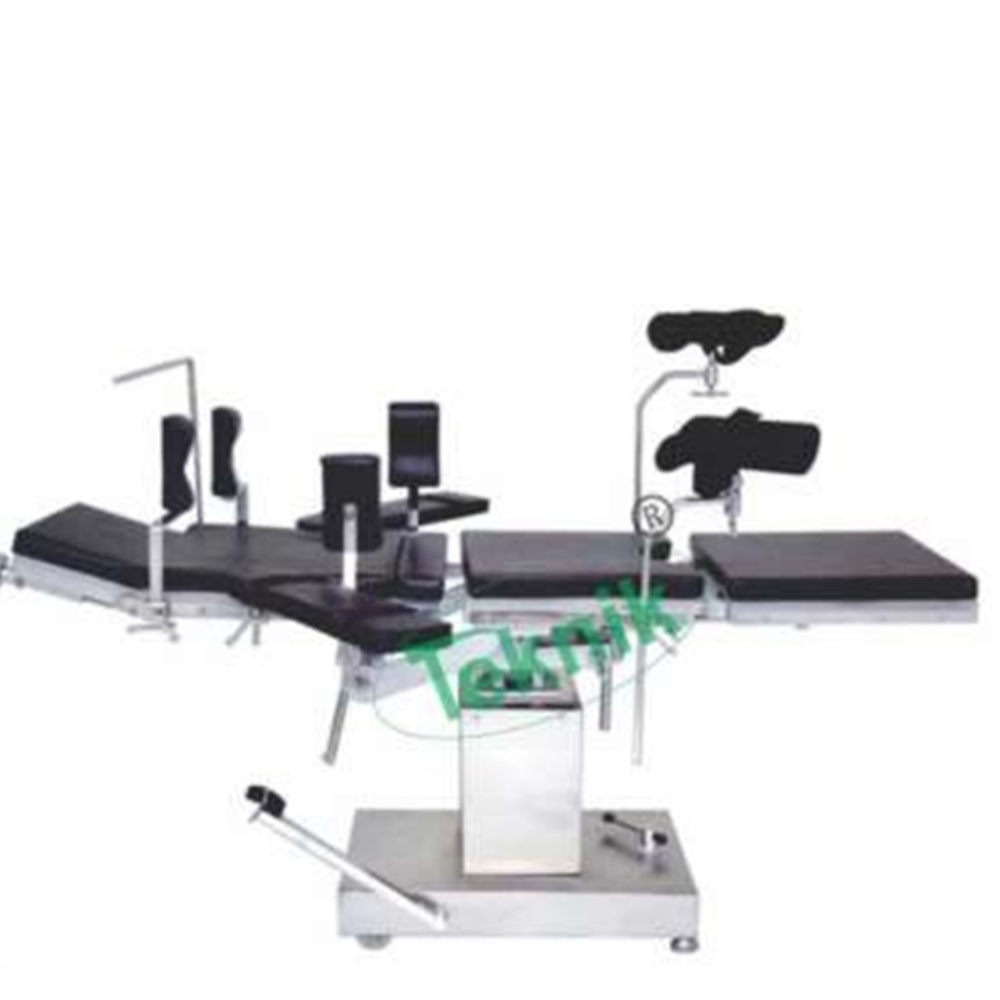

OPERATION TABLE ORDINARY PAEDIATRIC

Paediatric Surgery:

Motorized Electro Hydraulic-Low Height adjustable &

Operating Table for Paediatric Surgery

The table is autonomous, electro hydraulic, mobile table constructed of stainless steel / Nickel Chromium alloys and other high quality materials.

It is capable of most patients positioning (excluding slide) for a weight load up to 200 kg in normal orientation, 180kgs all patient positioning without slides and min 150 kg in full articulation with slides.

Has stable St. Steel base and column with four large swivel antistatic castors.

Has four self-compensating (for un-even floors) hydraulic operated floor locking and un-locking facility through hand control and manual override system in case of remote failure.

Table Top:

Fully radiolucent table top with motorized back section and motorized trend/rev trend, lateral tilts and up and down column movements.

Powered Sliding of 450-460mm, 225-230mm towards head and 225-230mm towards toe.

Four sections/segments with uro cut and return to level or "0" position through remote.

Interchangeable and Detachable, Head Section & Leg Section.

Reverse patient orientation is possible through the remote.

Side rails on both sides for attaching accessories/clamps.

Mattress pad 2" thick (latex free) for correct and comfortable positioning of patients at the joint areas between different segments, with cut-out on seat position of the table top.

Mattress to be fully radiolucent, antistatic, detachable, impermeable to fluids, easily cleanable.

Integrated ALS sensor in the table to prevent collison of the column movement and when collision is detected the hand control is vibrate and screen displays the collision at the same moment /controlled crash prevention system.

Battery Status indicator on the remote.

Inbuilt Foot pump and integrated Manual back up or override system via additional control unit.

The remote is operated via corded cable and Bluetooth as well.

Electro hydraulic floor locking and self-compensatory floor locking mechanism.

The table has upto 8 programmable memory.

Technical Data:

Motorized longitudinal sliding 450-460mm.

Height adjustment lowest height min. 680mm or less and upper height 1140mm or more.

Trendelenburg / Reverse Trendelenburg: 30-40 deg /25-30 deg.

Flex/ Reflex: 200- 220 deg/100- 120 deg.

Lateral tilt: +/- 20deg or more

Back up/down: +90 deg/-90 deg.

Head section adjustment: +90 deg to -90 deg

Leg section adjustment: up down+ 10 to -105 deg. Or more

Single button for self-levelling (neutral/zero position at touch of single button).

Overall length with head plate 2025 mm or more.

Width of table with side rails 560mm or less.

Operation System:

Electrically driven on 220 to 240 V, 50 Hz AC mains

In built rechargeable battery backup upto one week operation or (minimum 50 procedures) with a capacity to operate the table in case of mains AC power failure.

Hand control is bimode (wired and Bluetooth) with the LCD Display and pictogram. The Remote has motion and sound sensor.

In case of ALS the remote is vibrate and in case of a movement requiring special attention or at the end of the movement

Manual override operation for critical table movements like up and down, trend/rev tren, Lateral tilt, back up and down, sliding and floor locking in case of power/ hand control failure and integrated foot control.

The Manual Override system is present at the column.

Table with head and back plate: 01

Pair of split leg support with cushion: 01

Flexible Anaesthesia screen with Clamps: 02

Paediatric Simple Arm board with clamps and with concave gel pad: 02

Patient restrain Strap: 01

Pair of paediatric gopel leg holders with clamps age 7- 11 yrs : 01

Pair of paediatric gopel leg holders with clamps age 3- 6 yrs : 01

Gel Horseshoe Head Donut (paediatric and neonate ): 01 each

Paediatric flat bottom gel chest roll (Medium size, small size): 01 each

Paediatric Positioner Gel (small, medium): 01 each

Heel Pad Gel: 02

OPERATION TABLE ORDINARY PAEDIATRIC

OPERATION TABLE ORDINARY PAEDIATRIC

OPERATION TABLE ORDINARY PAEDIATRIC

OPERATION TABLE ORDINARY PAEDIATRIC

OPERATION TABLE ORDINARY PAEDIATRIC

OPERATION TABLE ORDINARY PAEDIATRIC

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Medical Equipment Category

Grossing Station

Grossing Station

Minimum Order Quantity : 1 Piece

Application : Industrial

Material : Stainless steel

Warranty : 1 Year

Get a Price/Quote

HEALTH DEVICES .

HEALTH DEVICES .

Minimum Order Quantity : 10 Units

Application : Hospital

Material : Plastic, ss

Warranty : 1 year

Product Type : Health Devices

Get a Price/Quote

Binocular Microscope for labs

Binocular Microscope for labs

Minimum Order Quantity : 1 Piece

Application : Laboratory

Material : Metal

Warranty : 1 Year

Get a Price/Quote

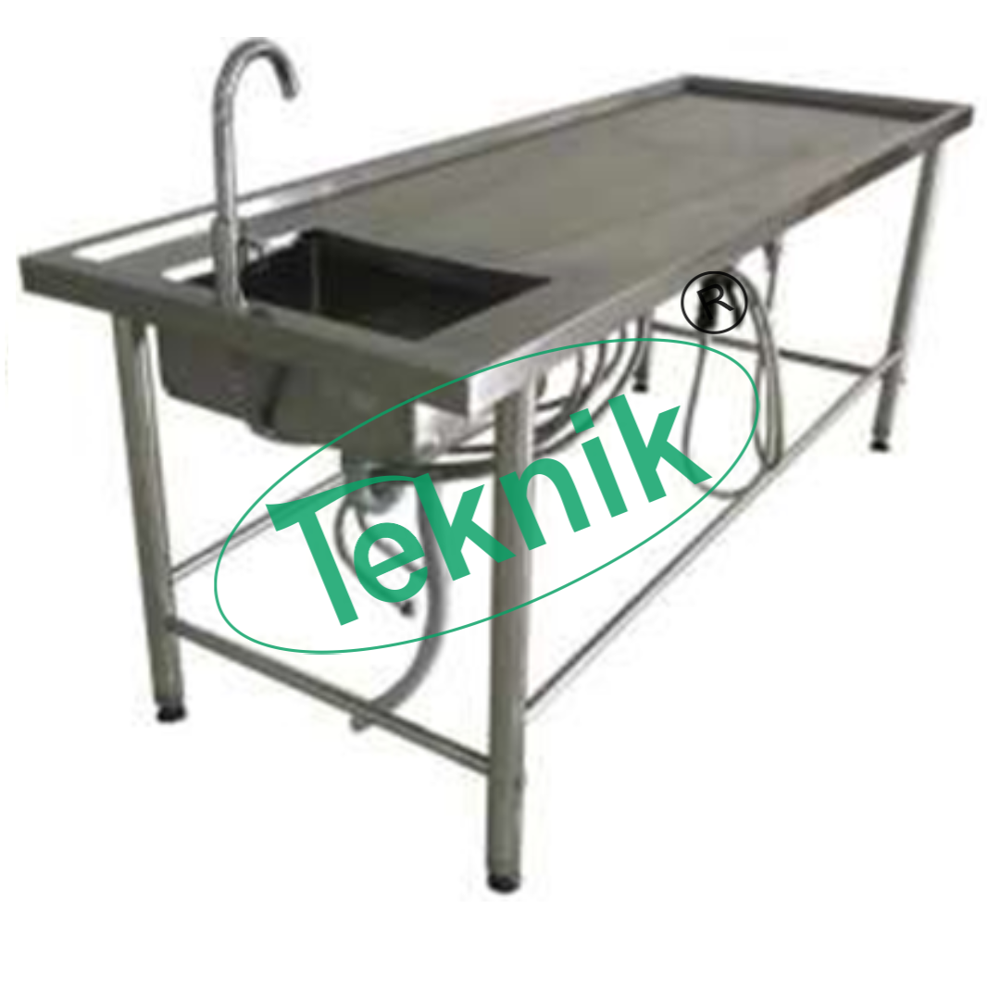

MORTUARY TABLE
