Multipurpose Material Testing System
Multipurpose Material Testing System
Multipurpose Material Testing System
Multipurpose Material Testing System
Multipurpose Material Testing System
Multipurpose Material Testing System
images Send Inquiry
Request To Call Back

Multipurpose Material Testing System

Get a Price/Quote
MOQ : 1 Unit

Multipurpose Material Testing System Specification

  • Voltage
  • 230 Volt (v)
  • Power Supply
  • Electric
  • Material
  • Mild Steel
  • Automation Grade
  • Automatic
  • Usage
  • Industrial
  • Frequency
  • 50 Hertz (HZ)
  • Color
  • White Blue
  • Mounting Type
  • Floor Mounting


Multipurpose Material Testing System Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Telegraphic Transfer (T/T), Cheque, Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 100 Units Per Week
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


Multipurpose Material Testing System About

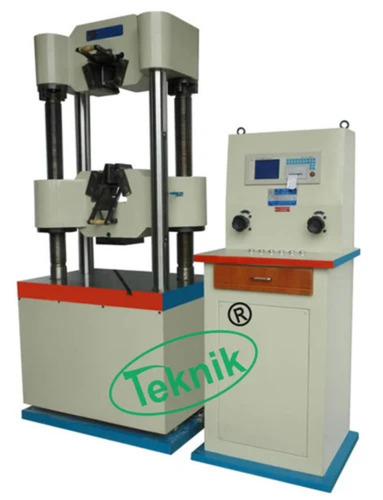

MULTIPURPOSE MATERIAL TESTING SYSTEM (CMT-20 Computer Control Electronic
Universal Testing Machine)

  • PC Universal Measure Tensile Strength Testing Instrument/Tensile Testing Machine with Computer and Printer Test operation and data processing meet the following requirements of test method to analysis
  • Tensile Test Method
  • Compression Test
  • Metals and Nonmetallic material (including composite material)Compression Test
  • Bending Test
  • Shear Test
  • It has achieve REH, REL, Rp0.2, Fm, Rt0.5, Rt0.6, and Rt0.65, Rt0.7, Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.
Main technical parameters:
  • Maximum test force:20KN
  • Accuracy class:0.5
  • Measuring range of test force:0.4%100%FS full scale
  • Indicating error of test force:within 0.5% of indicating value
  • Resolution of test force1/200000 of maximum test force, up to1/300000, grade unchanged and resolution unchanged in whole process
  • Deformation measuring range:0.2%100%FS
  • Deformation indicating error:within 0.5% of indicating value
  • Resolution of deformation:1/200000 of maximum deformation, up to 1/300000
  • Displacement indicating error:within 0.5% of indicating value
  • Resolution of displacement:0.025m





Advanced Industrial Testing Solution

The Multipurpose Material Testing System brings precise and efficient testing capabilities to industrial facilities. Designed for flexibility, it supports a spectrum of testing requirements, ensuring comprehensive assessment of materials under standard conditions. With automatic controls and a sturdy build, the system enhances productivity while maintaining consistent and accurate results.


User-Friendly and Durable Construction

Expertly engineered with mild steel, this testing system is both durable and dependable. The automatic operation minimizes manual intervention, making it user-friendly even for high-volume testing tasks. Its distinctive white-blue finish not only offers aesthetic appeal but also easy identification in the lab or on the factory floor.

FAQs of Multipurpose Material Testing System:


Q: How does the Multipurpose Material Testing System operate?

A: The system operates automatically using a 230V electric power supply at 50 Hertz frequency. Once installed and calibrated, the user can run various material tests with minimal manual input, ensuring accuracy and ease of operation.

Q: What types of materials can be tested with this system?

A: This testing system is designed to accommodate a diverse range of industrial materials such as metals, plastics, composites, and more, providing comprehensive testing solutions for quality assurance.

Q: When should I use this material testing system in my industrial process?

A: It is best used during quality control phases, routine material assessment, research and development, or whenever verification of material properties is required within your industrial workflow.

Q: Where can this testing system be installed?

A: The system is intended for floor mounting, making it suitable for laboratories, quality control rooms, or on the factory floor in industrial facilities.

Q: What is the process for setting up and using this machine?

A: After positioning the machine on the floor, connect it to a 230V electric source. Calibration should be performed according to the manual, after which the system is ready for automated testing via its user-friendly interface.

Q: What are the key benefits of using this material testing system?

A: Key advantages include automated operation for increased efficiency, consistent test results for quality assurance, and robust construction that ensures long-term durability in demanding industrial settings.

Q: Who can benefit from this multipurpose material testing system?

A: Distributors, exporters, manufacturers, suppliers, and traders in India involved in material-based industries will benefit greatly from the versatility and reliability of this testing system.
