Direct Shear . Specification

Measurement Range
0 - 10 mm (shear displacement)

Usage
Soil Testing Equipments

Product Type
Direct Shear

Model No

Automation Grade
Semi-Automatic

Feature
Motorized Operation, Sturdy Design, Easy to Operate

Voltage
220-240 V Volt (v)

Application
Soil Testing Equipments

Material
Mild Steel (Powder Coated), Cast iron parts

Accuracy
0.01 mm (displacement measurement) %

Temperature Range
Ambient Celsius (oC)

Core Components
Shear Box, Loading Frame, Dial Gauges, Motorized Drive Mechanism, Control Panel

Power Source
Electric

Capacity
12 kN Pcs/hr

Frequency
50 Hz Hertz (HZ)

Equipment Materials
Mild Steel (Powder Coated), Cast iron parts

Type
Direct Shear Apparatus

Display Type
Analog / Dial Gauge

Dimension (L*W*H)
Approx 700 x 600 x 1040 mm Millimeter (mm)

Weight
Approx 75 kg Kilograms (kg)

Maximum Vertical Load
8 kg/cm2

Horizontal Speed
1.25 mm/min

Shear Box Size
60 mm x 60 mm x 50 mm

Maximum Horizontal Travel
9 mm

Motor Rating
1/4 HP

Direct Shear . Trade Information

Minimum Order Quantity
1 Piece

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

Direct Shear . About

Direct Shear, Motorised, 12 Speed

The apparatus comprises of the following.

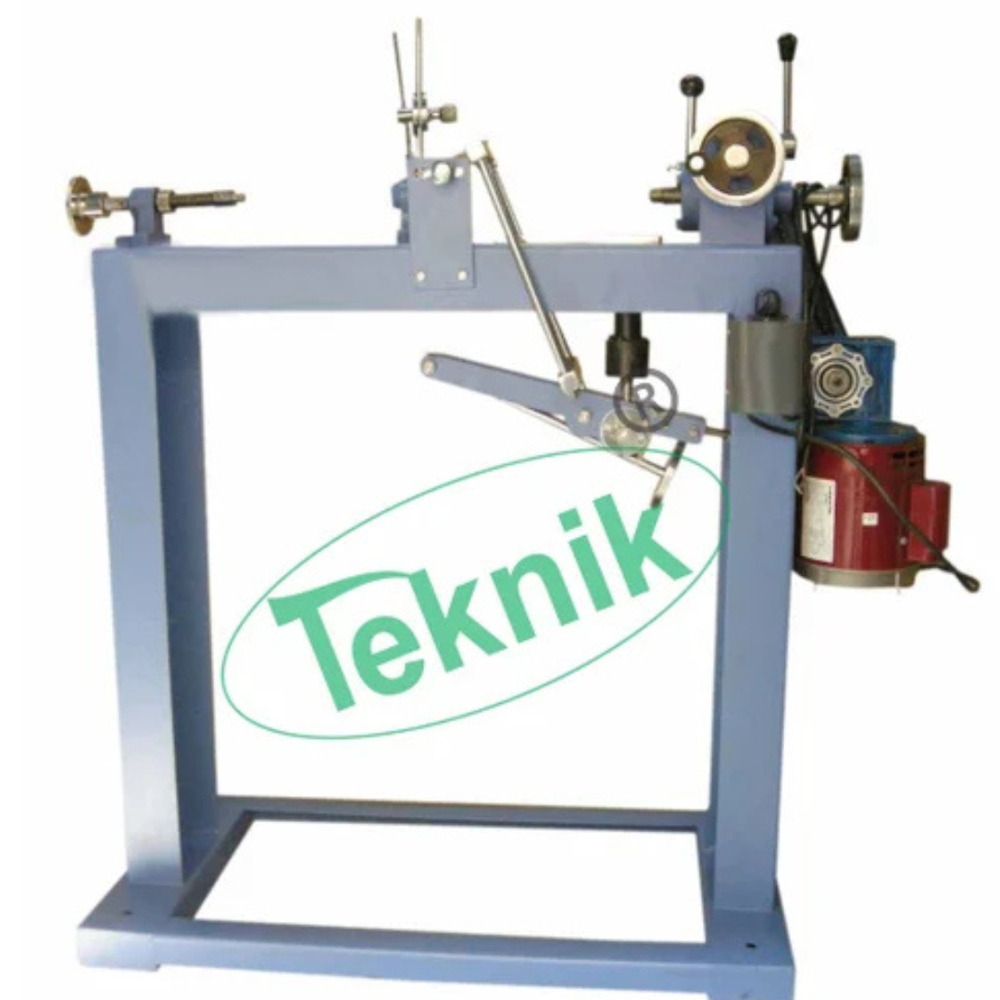

LOADING UNIT :Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8 kg/sq. cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

SHEAR BOX ASSEMBLY :Comprising direct shear box in two halves for a square specimen size 60 x 60 x 25mm one pair of plain gripper plates, One pair of perforated gripper plates, one pair of porous stones, one top of loading pad.

SHEAR BOX HOUSING: Accommodates the direct shear box assembly. Complete with two ball roller strips. Specimen cutter : for cutting 60 x 60 x 25mm. Specimen form larger samples. Set of weights to give a normal stress of 3kg/sa.cm. Through larger as following : -
To give kg/cm. 0.05,Qty. 4 nos.To give kg/cm. 0.1,Qty. 1 no.To give kg/cm. 0.2,Qty. 1 no.To give kg/cm. 0.5,Qty. 3 nos.To give kg/cm. 1.0,Qty. 1 no. Complete set as above but without proving ring. Net weight 140 kg.

ESSENTIAL ACCESSORIES :High sensitivity compression proving ring. Cap 200kg. One consolidation dial gauge 0.01mm x 25mm and one strain dial gauge 0.01mm x 25mm

OPTIONAL EXTRAS :2 Additional set of weights to give a normal stress of 5 kg/cm . Soil sampler for 60mm x 60mm specimen and test forms pad of 50. SPARES : Porous stone for 60mm x 60mm size sample available in pairs. Unit is electrically operated to give the following 12 rates or strains. 1.25, 0.625, 0.25, 0.125, 0.05, 0.025, 0.01, 0.005, 0.002, 0.001, 0.004 and 0.0002 mm/min. The apparatus is suitable for operation on 230 Volts Single Phase A.C. Supply.

Advanced Motorized Direct Shear Testing

The Direct Shear Apparatus integrates a motorized mechanism with precise control panel operations, enabling stable speed and load application during soil tests. Dial gauges deliver accurate shear displacement readings, while a sturdy build ensures longevity. Its powder-coated mild steel frame and cast iron parts resist corrosion and wear, making it ideal for intensive laboratory use and educational purposes in geotechnical engineering.

Reliable and User-Friendly Operation

Featuring semi-automatic functionality, the easy to operate with minimal technical training. Controls are thoughtfully arranged for intuitive use, and the analog/dial gauge display simplifies shear displacement monitoring. With ambient temperature adaptability and high measurement precision, this apparatus accommodates varied soil samples and testing requirements, ensuring dependable results for professionals in soil mechanics.

FAQs of Direct Shear:

Q: How does the Direct Shear Apparatus perform soil shear strength tests?

A: The uses a motorized drive to apply horizontal movement and vertical load to a soil sample within a 60 mm x 60 mm x 50 mm shear box. Measurement of displacement is tracked using dial gauges, providing accurate readings of soil shear characteristics under controlled test conditions.

Q: What are the main components included in the Direct Shear Apparatus?

A: The features a shear box, loading frame, precise dial gauges, a motorized drive mechanism, and an integrated control panel. All key components are built from durable mild steel and cast iron, ensuring high reliability and longevity in soil testing applications.

Q: When should the Direct Shear Apparatus be used in soil testing?

A: The ideal for laboratory tests where assessment of soil shear strength is critical, such as in foundations, embankments, slope stability studies, and material characterizations for construction projects.

Q: Where is the Direct Shear Apparatus commonly utilized?

A: This apparatus finds extensive use in soil mechanics laboratories, civil engineering departments, construction material testing centers, and research institutions across India, especially by exporters, manufacturers, and suppliers.

Q: What is the process for conducting a test using the Direct Shear Apparatus?

A: Operators place the soil specimen in the shear box, adjust vertical loads up to 8 kg/cm, and initiate motorized horizontal travel at speeds up to 1.25 mm/min. Displacement and shear resistance are monitored via dial gauges, and the process typically runs until desired shear displacement is reached.

Q: How does the apparatus benefit soil testing professionals?

A: By offering semi-automatic, user-friendly operation and highly accurate analog measurement (0.01 mm), the ensures precise soil shear strength assessments, helps professionals make informed engineering decisions, and streamlines the testing workflow.
