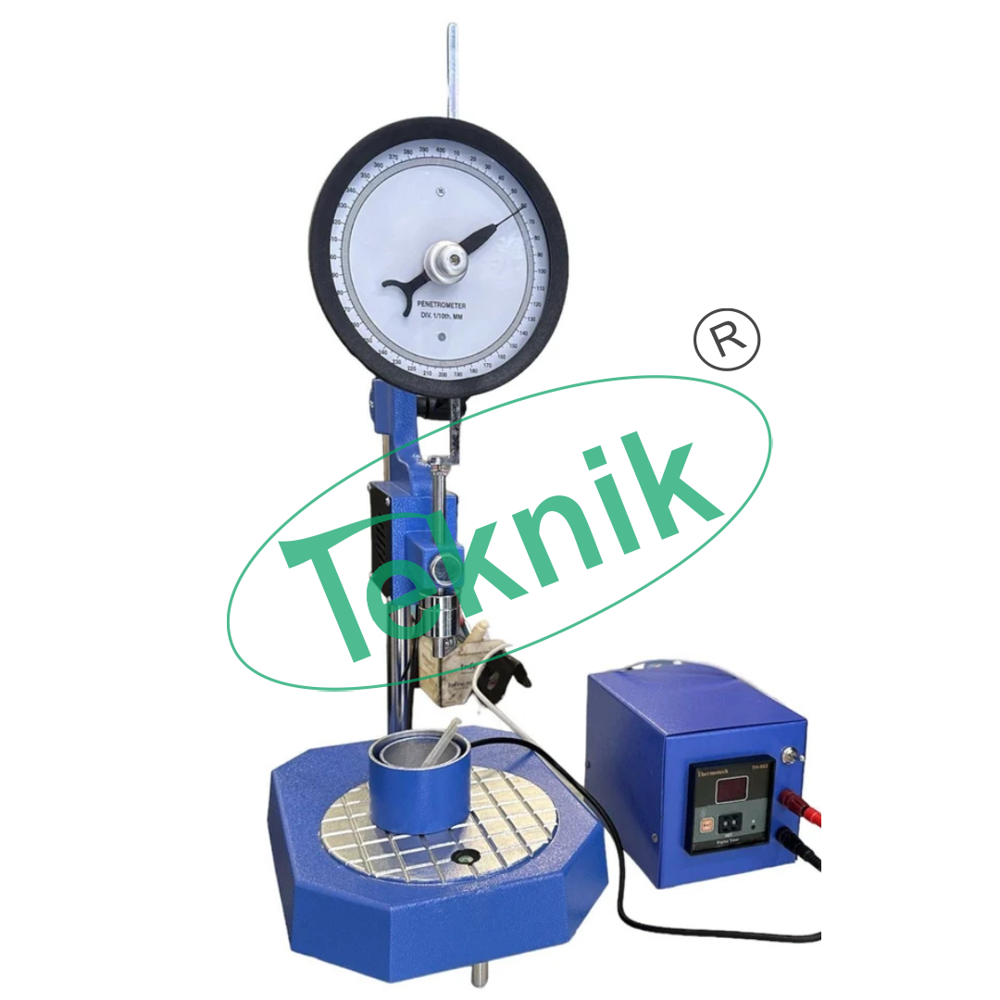

Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
Bitumen Pentrometer .
images Send Inquiry
Request To Call Back

Bitumen Pentrometer .

Get a Price/Quote
MOQ : 1 Unit

Bitumen Pentrometer . Specification

  • Voltage
  • 230 V Volt (v)
  • Application
  • Soil Testing Equipments
  • Feature
  • Manual Operation, Adjustable Sample Holder, Precision Penetration Measurement
  • Automation Grade
  • Manual
  • Model No
  • Product Type
  • Bitumen Pentrometer
  • Usage
  • Soil Testing Equipments
  • Measurement Range
  • 0-50 mm
  • Capacity
  • 150g Kg
  • Frequency
  • 50 Hz Hertz (HZ)
  • Power Source
  • 230V AC (Mains Operated)
  • Core Components
  • Hardened Steel Needle, Plunger, Timing Device
  • Temperature Range
  • 5 C to 40 C Celsius (oC)
  • Accuracy
  • 0.1 mm %
  • Material
  • Corrosion-Resistant Metal Body, Stainless Steel Needle
  • Equipment Materials
  • Corrosion-Resistant Metal Body, Stainless Steel Needle
  • Type
  • Bitumen Pentrometer
  • Display Type
  • Analog Dial
  • Dimension (L*W*H)
  • 270 x 210 x 420 mm Millimeter (mm)
  • Weight
  • 8 kg (approx.) Kilograms (kg)
  • Timer
  • 0-60 seconds mechanical stop-watch
  • Needle Size
  • Length: 50 mm; Diameter: 1 mm
  • Finish
  • Powder Coated Body
  • Ambient Humidity
  • Up to 80% RH
  • Plunger Mass
  • 100 g
  • Sample Holder
  • Brass with Three Level Adjustments
  • Sample Cup Diameter
  • 55 mm
  • Mounting Type
  • Bench Top


Bitumen Pentrometer . Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


Bitumen Pentrometer . About

Bitumen pentrometer medium


Penetrometers are used for testing wide variety of materials such as grease, petroleum, bitumen, tar, asphalt, wax polish, food stuffs , rubber, cement , pharmaceutical creams and soils.



Superior Construction and Materials

The Bitumen Pentrometer is built from corrosion-resistant metals and a powder-coated body, ensuring longevity in laboratory environments. The stainless steel needle and brass sample holder withstand frequent use while maintaining precision, making it suitable for routine and rigorous soil testing.


Efficient Manual Operation for Accurate Testing

Designed for manual use, this pentrometer provides precise control during bitumen penetration tests. The mechanical stopwatch and analog dial display allow for careful monitoring of the penetration process, ensuring reliable results in each measurement cycle.


Versatile Adjustability and Measurement Range

The adjustable sample holder offers three-level settings for sample positioning, accommodating various testing requirements. Its penetration measurement range of 0-50 mm, with an accuracy of 0.1 mm, helps users achieve repeatable and exact results in soil analysis.

FAQs of Bitumen Pentrometer:


Q: How do I operate the Bitumen Pentrometer for soil testing?

A: To use the Bitumen Pentrometer, place the bitumen sample in the brass holder, adjust the sample position using the three-level adjustments, set up the stainless steel needle and plunger, and start the mechanical stopwatch. The analog dial displays the penetration depth, ensuring precise manual measurement as per ASTM D5 standards.

Q: What measurement range does the Bitumen Pentrometer cover?

A: This instrument measures penetration depths from 0 to 50 mm with an accuracy of 0.1 mm, making it suitable for a wide range of bitumen and soil testing applications in laboratories and research settings.

Q: When should I use the Bitumen Pentrometer in soil testing?

A: The Bitumen Pentrometer is ideal for use during quality control or research processes where the consistency and hardness of bitumen samples in soil analysis need to be determined. It is commonly used in test phases for construction materials and infrastructure development.

Q: Where can the Bitumen Pentrometer be installed?

A: As a bench-top device, the pentrometer is best installed in laboratory or analysis rooms with stable surfaces. Its compact dimensions (270 x 210 x 420 mm) make it suitable for laboratory benches and dedicated testing stations.

Q: What is the process for adjusting the sample holder on the Bitumen Pentrometer?

A: The brass sample holder features three-level adjustments to accommodate samples of varying sizes. Simply use the adjustment mechanism to set the desired height for your sample, ensuring precise alignment with the needle for accurate penetration measurement.

Q: How does the Bitumen Pentrometer benefit soil testing procedures?

A: By providing high-precision penetration measurement and durable construction, this device improves the accuracy and repeatability of soil and bitumen consistency tests, enabling reliable results that support informed decision-making in construction and research projects.

Q: What maintenance is required for the Bitumen Pentrometer?

A: Regular cleaning of the sample holder, needle, and body using suitable materials will preserve accuracy. Check for corrosion, and inspect mechanical components for wear. Since the equipment is mains operated (230V AC) and manual, minimal technical servicing is needed.
