About TEMPERATURE CONTROL TRAINER (COMPUTER CONTROLLED SYSTEM) APPARATUS

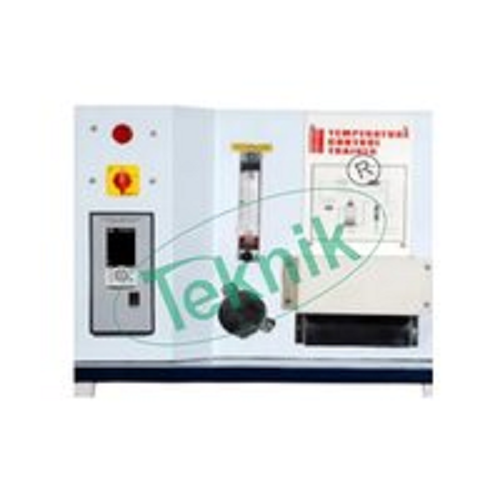

The process setup consists ofheating tank fitted with thyristor-controlled heater for on line heating of thewater. Water is supplied from laboratory constant head tank and its flow can bemanipulated and measured by provided Rotameter. The temperature of the heatedwater is sensed by RTD sensor. This measured variable through TemperatureTransmitter is communicated to Digital Indicating Controller. Error iscalculated and output, accordingly, is communicated to Thyristor Controlledheater to achieve the Set Point. These units along with necessary piping aresupported in a well-designed housing and are fixed on base plate.

Experimentation:

To study the open loop or manualcontrol

To study the proportional control

To study the two mode (P+I)control

To study the two mode (P+D)control

To study the three mode (PID)control

To study the tuning of controller(Open loop method) using Zeigler-Nichols method.

To study the stability of thesystem using the BODE PLOT.

Auto Tuning

Technical Detail:

Temperature Transmitter: InputRTD PT-100 (0-100C), output 4-20 mA.

Process tank: Material StainlessSteel,

Heater: Nichrome Wire Heater,Capacity 1 Kw

Thyristor Controller: Input4-20mA for heater.

Flow Measurement: Rotameter.

Piping: Size 1/4

Interfacing unit: Forinput-output communication with auto/manual facility

Micro-processor Controller: PIDSetting, auto tuning, fully programmable with serial communication.

Software: For experimentation,PID control, Data logging, trend plot, offline analysis and printing.
