SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
images Send Inquiry
Request To Call Back

SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD

Get a Price/Quote
MOQ : 1 Piece

SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD Specification

  • Product Type
  • SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
  • Resolution
  • 1 RPM
  • Frequency
  • 50 Hz
  • Max Height
  • Approx. 500 mm
  • Test Range
  • Speed range: 720 to 1440 RPM depending on cascade type
  • Equipment Type
  • SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
  • Response Time
  • <1 second
  • Number of Specimens
  • Designed for demonstration/1 specimen at a time
  • Power Supply
  • 3 Phase, 415V AC, 50Hz
  • Humidity
  • Up to 85% RH (Non-condensing)
  • Measuring Range
  • Speed: 0 to 1500 RPM
  • Features
  • Direct and cumulative cascading, fuse protection, safety covers, phase indicator lamps, easy expansion
  • Interface Type
  • Front Panel Switches & Terminals
  • Specimen Size
  • Standard 3-phase induction motor
  • Display Type
  • Digital (RPM display on front panel)
  • Operating Voltage
  • 415V AC, 3-Phase
  • Automation Grade
  • Manual with provision for auto-study
  • Accuracy
  • 1% of reading
  • Application
  • SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD
  • Temperature
  • 0C to 45C (Operating)
  • Mounting Type
  • Bench Top
  • Usage
  • Laboratory/Industrial Training
  • Capacity
  • Up to 1 HP (Standard) - Customization available
  • Machine Weight
  • Approx. 65 kg
  • Test Speed
  • Variable as per cascade configuration
  • Control Mode
  • Manual/Automatic via switch selection
  • Dimensions
  • Approx. 800 mm x 600 mm x 500 mm
  • Test Points
  • All required terminals provided for voltage, current, and speed measurement
  • Connection Diagrams
  • Clearly labelled circuit schematic on front panel
  • Motor Coupling
  • Flexible coupling provided for cascade arrangement
  • Rotor Type
  • Slip ring and Squirrel cage options available
  • Accessories
  • User manual, patch cords, fuses, tachometer (optional)
  • Protection
  • Overcurrent/Short circuit protection (MCB/Fuse)
  • Construction
  • Powder coated MS body; high-grade copper windings
  • Panel Meters
  • Provided for voltage, current, wattmeter readings
  • Demonstration Capability
  • Double and cumulative cascading demonstration possible
  • Wiring
  • High insulation wires, color-coded for safety


SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD About

Speed Control of 3 phase Induction Motor by Cascading Method .

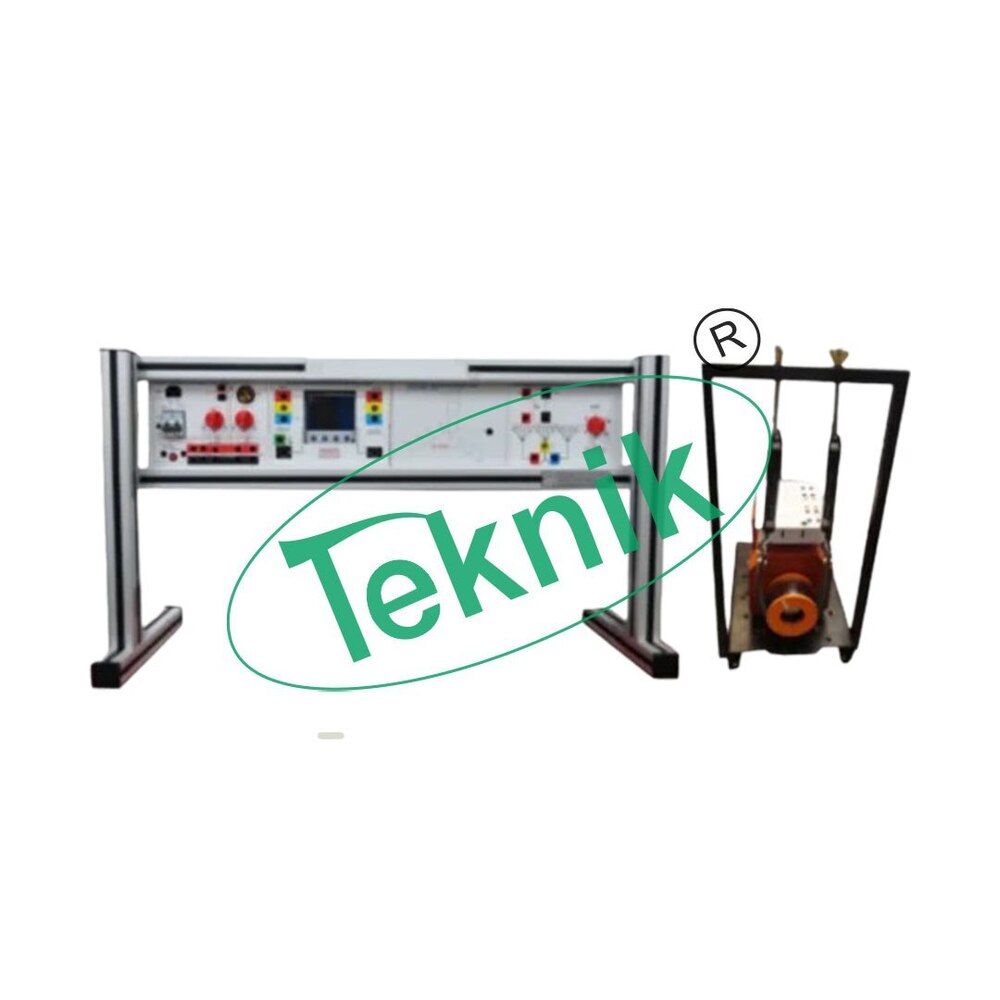

Supplied With 3 Phase AC Slip-Ring Induction Motor 2HP, coupled with 3 Phase AC Slip-Ring Induction Motor 2HP fitted with Proximity Sensor, Rotor Resistanace Strater & Control Panel fitted with Necessary Meters, DOL Starter & Digital RPM Meter




Comprehensive Demonstration of Speed Control

This equipment is tailored for laboratory and industrial training, enabling users to explore speed control techniques on three-phase induction motors via cascading. It supports both slip ring and squirrel cage rotor types, with provisions for double and cumulative cascading experiments, delivering practical insights into real-world motor applications.


User-Friendly and Safe Operation

All terminal points for voltage, current, and speed measurement are clearly marked and easily accessible, while safety features like MCB/fuses and insulation assure user protection. The bench top mounting, modular design, color-coded wiring, and included accessories streamline the learning and experimentation process.


Precision Measurement and Versatile Control

Equipped with digital panel meters and a rapid-response tachometer (optional), the system offers accurate (1%) and real-time speed monitoring. Manual or automatic speed control selection is possible via front panel switches. Measurement ranges and configurations support a variety of cascading setups and educational requirements.

FAQ's of SPEED CONTROL OF 3 PHASE INDUCTION MOTOR BY CASCADING METHOD:


Q: How does the cascading method control the speed of a three-phase induction motor?

A: The cascading method connects two three-phase induction motors-either slip ring or squirrel cage-in series or parallel to adjust the synchronous speed of the combined system. By configuring the motors for either double or cumulative cascading, this setup allows variable speed ranges (720 to 1440 RPM), which are selectable as per the experiment.

Q: What rotor types are compatible with this speed control trainer?

A: The equipment is compatible with both slip ring and squirrel cage induction motors. This flexibility allows users to demonstrate various cascading techniques and understand performance differences between rotor types in speed control experiments.

Q: When is speed measurement data available and how accurate is it?

A: The system provides real-time speed measurements using digital RPM displays and an optional tachometer. Readings are available instantly with response times under one second. The measurement is accurate within 1% of the reading and has a resolution of 1 RPM.

Q: Where are connection diagrams and test points located?

A: All required terminals for voltage, current, and speed measurement are positioned on the front panel. A clearly labeled circuit schematic is also displayed on the panel to facilitate easy, correct wiring and setup during laboratory exercises.

Q: What is the process for demonstrating double and cumulative cascading?

A: The trainer includes flexible motor coupling and switch-controlled configuration to easily switch between double and cumulative cascading setups. Users can manually or automatically select the required mode, allowing comprehensive study of both speed control methods using the supplied equipment and diagrams.

Q: How does the equipment ensure safe operation during experiments?

A: Safety is assured through protective features like MCBs/fuses for overcurrent and short circuit prevention, high insulation color-coded wiring, and safety covers. The design meets rigorous laboratory safety standards, making it reliable for repeated educational use.

Q: What accessories and expansion options are provided with the trainer?

A: Each system comes complete with a user manual, patch cords, safety fuses, and a flexible coupling for motor arrangement. A tachometer is available as an optional accessory. The modular front-panel design allows easy expansion or customization for enhanced learning and demonstration capabilities.
