Specific Gravity Density Apparatus for Concrete Testing
Specific Gravity Density Apparatus for Concrete Testing
images Send Inquiry
Request To Call Back

Specific Gravity Density Apparatus for Concrete Testing

Get a Price/Quote
MOQ : 1 Piece

Specific Gravity Density Apparatus for Concrete Testing Specification

  • Display Type
  • Graduated glass jar, manual reading
  • Humidity
  • 0-95% RH (for testing environment)
  • Mounting Type
  • Table top
  • Application
  • Measurement of specific gravity and density for concrete aggregates
  • Specimen Size
  • Fine and coarse aggregate up to 10 mm
  • Max Height
  • Approx. 350 mm (assembled)
  • Product Type
  • Specific Gravity Density Apparatus
  • Automation Grade
  • Manual
  • Port Size
  • Compatible with 1 litre and 3 litre density bottles
  • Number of Specimens
  • Single test at a time
  • Equipment Type
  • Specific Gravity Density Apparatus
  • Usage
  • Concrete Testing Equipment
  • Resolution
  • 0.01
  • Measuring Range
  • 2.0-3.0 (specific gravity value)
  • Temperature
  • Recommended 10C - 40C
  • Response Time
  • Instantaneous, based on manual test
  • Hardness
  • Borosilicate glass: 6-7 Mohs scale
  • Features
  • Corrosion resistant, Durable, Easy to clean, Portable and stable base
  • Test Range
  • Specific Gravity (2.4 - 2.9) Density measurement for concrete aggregates
  • Accuracy
  • 0.01
  • Capacity
  • 1 Litre and 3 Litre jar capacity
  • Machine Weight
  • Approx. 7 kg
  • Test Speed
  • Manual control
  • Test Width
  • Suitable for standard concrete aggregates
  • Control Mode
  • Manual
  • Sinker Material
  • Brass or stainless steel, corrosion resistant
  • Filling Capacity
  • Up to 3000 ml (3L) jar
  • Jar Material
  • Borosilicate glass
  • Conformance Standards
  • IS: 2386 (Part 3), ASTM C128, ASTM C127
  • Accessories Supplied
  • Pycnometer jar(s), Sinker, Brush, Thermometer (on request)
  • Cleaning Method
  • Easy to dismantle for cleaning and maintenance
  • Stand Type
  • Heavy-duty metal stand with levelling screws
  • Packing Type
  • Foam-box packed, carton shipping


Specific Gravity Density Apparatus for Concrete Testing Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash Advance (CA), Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque
  • Supply Ability
  • 100 Pieces Per Week
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


About Specific Gravity Density Apparatus for Concrete Testing

Specific Gravity (Density) Apparatus:

We are offering Specific Gravity (Density) Apparatus which is useful in the determination of specific gravity of a test liquid by the falling-drop method is described. This feature enables the initial fluid column to be conveniently repetitively used for specific gravity determinations.

Specific Gravity (Density) apparatus:

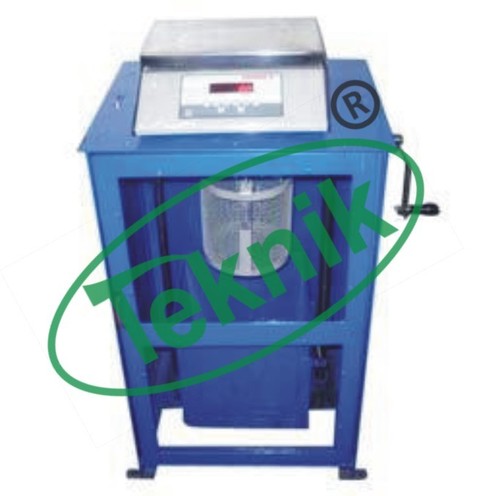

BS: 1881-114./Buoyancy Balance.Consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The Electronic Digital Balance 10 kg x 0.5 gram supplied with frame, water tank, suspension hook, Wire basket 200x200 mm.



Reliable and Accurate Aggregate Testing

Rigorously designed to deliver consistent, accurate results, this apparatus measures specific gravity within a range of 2.0-3.0 with an accuracy of 0.01. Whether testing fine or coarse aggregates, the borosilicate glass jar and corrosion-resistant components ensure dependable performance and resistance to laboratory chemicals. Suited for use in quality control, teaching, and research laboratories, it allows users to measure aggregate density efficiently and reliably.


Sturdy Construction, User-Friendly Operation

Manufactured with premium materials, including a stable metal base and high-hardness borosilicate glass, the apparatus is robust and simple to operate. Its manual control and easy-to-read graduated scale enable precise readings, while the ergonomic design allows quick set up and dismantling for easy cleaning and maintenance. The unit's portability and convenient packaging make it suitable for transportation and multiple lab environments.


Compliance and Versatility

The apparatus strictly adheres to key standards-IS: 2386 (Part 3), ASTM C128, and ASTM C127-ensuring its suitability for global and Indian markets. Capable of handling both 1L and 3L jars, it is designed for versatile testing scenarios, meeting the diverse requirements of concrete aggregate testing across laboratories, universities, and industrial settings.

FAQ's of Specific Gravity Density Apparatus for Concrete Testing:


Q: How do you operate the Specific Gravity Density Apparatus for concrete aggregate testing?

A: Start by filling the borosilicate glass pycnometer jar with the specified aggregate and water. Attach the corrosion-resistant sinker as needed, and place the jar onto the heavy-duty stand. The graduated markings on the jar allow you to manually read and record the specific gravity and density according to your required standard method.

Q: What is the recommended cleaning process for this density apparatus?

A: The apparatus is easy to dismantle for thorough cleaning. Carefully remove the pycnometer jar and sinker, clean them using the supplied brush and standard lab detergents, and rinse thoroughly. Ensure all components are dry before reassembling and storing the equipment.

Q: When should I use a 1L jar versus a 3L jar for aggregate testing?

A: Use the 1L jar for small specimen volumes, especially useful for fine aggregates. The 3L jar is recommended for larger quantities or coarser aggregates up to 10 mm. Choosing the appropriate jar ensures accurate and standardized test results according to your sample size and the relevant test protocol.

Q: Where is this apparatus ideally utilized?

A: This specific gravity density apparatus is suitable for use in concrete testing laboratories, research facilities, educational institutions, and construction material quality control departments. Its portable design and robust construction allow for easy integration into diverse lab environments.

Q: What standards does this apparatus comply with for accurate testing?

A: The apparatus conforms to IS: 2386 (Part 3), ASTM C128, and ASTM C127 standards, ensuring credible and globally recognized results for the measurement of specific gravity and density in concrete aggregates.

Q: How can the apparatus benefit my aggregate testing process?

A: This equipment delivers rapid, precise, and reliable measurements with minimal setup time. Its corrosion-resistant and easy-to-clean materials prolong its service life, while the graduated manual display simplifies readings, making it both an efficient and cost-effective solution for aggregate testing.
