Microprocessor Training Kit With LCD Display

Microprocessor Training Kit With LCD Display

Send Inquiry

Request To Call Back

Microprocessor Training Kit With LCD Display

Get a Price/Quote

MOQ : 1 Piece

Microprocessor Training Kit With LCD Display Specification

Features
On-board RAM, HEX keypad, LCD display, Power On Reset, Expansion connectors

Application
Microprocessor and Microcontroller Lab

Response Time
Instant (as per microprocessor speed)

Usage
Microprocessor and Microcontroller Lab

Display Type
Alphanumeric LCD

Operating Voltage
5V DC (logic circuits), 230V AC (supply)

Frequency
50/60Hz

Interface Type
RS232, USB (optional), GPIO Header

Automation Grade
Manual and Semi-Automatic

Product Type
Microprocessor Training Kit With LCD Display

Mounting Type
Tabletop

Power Supply
230V AC, 50Hz

Accuracy
High (depends on used microprocessor)

Resolution
16x2 Character LCD Display

Temperature
10C40C

Humidity
Up to 90% RH (Non-Condensing)

Port Size
Standard Serial Port (RS232)

Capacity
Expandable memory support

Machine Weight
Approx. 2.5 kg

Test Speed
Programmable

Control Mode
Manual/Auto

Peripherals Support
8255 PPI, 8253 Timer, 8279 Keyboard/Display (as applicable)

Equipment Type
Microprocessor Training Kit With LCD Display

Buzzer/Audio Indication
Yes

Instruction Manual
Included

Programming Support
Assembly Language

LCD Size
16 x 2 Characters

Microprocessor Type
8085 (or as specified)

Safety
Fuse protected, ESD compliant

Expansion Slots
Provided for add-on peripherals

Keyboard
Hexadecimal keypad (typically 20 keys)

PCB Quality
FR4, High Quality

On-board ROM/RAM
Yes, (typically 32KB+ RAM, 16KB+ EPROM)

Microprocessor Training Kit With LCD Display Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Microprocessor Training Kit With LCD Display

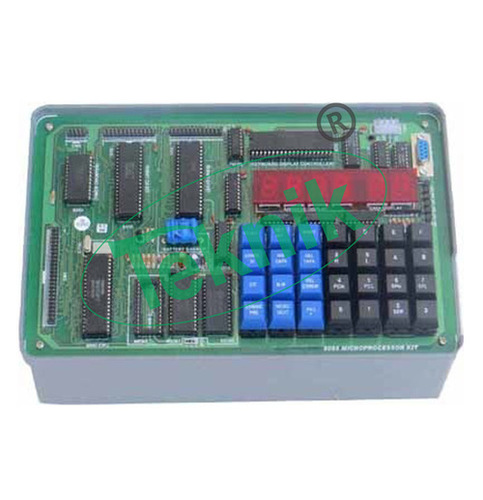

8085 Microprocessor Training Kit With LCD Display:

Micro Teknik

Based on 8085 CPU operating at 6.144 MHz crystal.
16K bytes of EPROM with powerful monitor program.
8K byte of RAM available to the user.
Battery backup for users RAM with 3.6V rechargeable cell
Total on board memory expansion upto 64K bytes using 2732/2764/27128/6264.
Memory mapping definable by the user.
20x2 Liquid Crystal Display (LCD).
104/105KeysIBM PC Compatible ASCII Keyboard
48 programmable I/O lines provided through 2 nos. of 8255.
16 bit programmable timer/counter using 8253.
RS-232C interface for CRT using SID / SOD lines.
Two modes of Commands: - Key board Mode & Serial Mode
All address, data and control lines are buffered and made available at the edge connector as per STD Bus configuration.
Powerful Software Commands like relocate, string, fill, insert, delete, block move, memory compare etc.
Onboard Single Line Assembler/Disassembler.
Facility for Downloading/Uploading files from/to PC.
In-built Power Supply :
Users Manual.

Versatile Microprocessor Learning Platform

This kit offers comprehensive learning opportunities for students and engineers by integrating an 8085 microprocessor with advanced peripherals such as 8255 PPI, 8253 Timer, and 8279 Keyboard/Display. Its expandable design and generous memory provide flexibility for a wide range of experiments. The kit is optimized for smooth operation in microprocessor and microcontroller labs.

User-Friendly Operation and Safety

An easy-to-use hexadecimal keypad and clear 16x2 LCD display simplify programming and output monitoring. Safety is ensured through robust FR4 PCB quality, fuse protection, and ESD compliance. The tabletop mounting and intuitive manual/semi-automatic control make setup and handling effortless.

Comprehensive Connectivity and Expansion

Standard RS232 serial port and optional USB interface allow reliable integration with external devices and PCs. Expansion slots support add-on peripherals for advanced experimentation, while the GPIO header enables custom interfacing. The kit adapts to evolving academic and industrial requirements.

FAQs of Microprocessor Training Kit With LCD Display:

Q: How do I get started with the Microprocessor Training Kit with LCD Display?

A: Simply connect the kit to a 230V AC power supply, follow the setup instructions in the included manual, and use the hexadecimal keypad to input your programs. The LCD will display results in real-time as you develop and test assembly language routines.

Q: What types of peripherals can be connected or expanded on this training kit?

A: The kit supports expansion using peripherals like 8255 Programmable Peripheral Interface, 8253 Timer, and the 8279 Keyboard/Display interface. Expansion slots and GPIO headers enable connectivity with other compatible modules for extended functionality.

Q: Where is this microprocessor training kit typically used?

A: It is ideal for microprocessor and microcontroller laboratories in educational institutions, technical training centers, and research facilities. It suits both beginners and advanced learners seeking practical knowledge in hardware and software interfacing.

Q: What benefits does the LCD display provide over other output methods?

A: The 16x2 alphanumeric LCD offers instant, clear, and detailed feedback for code execution, debugging, and result observation. It enhances the learning experience by easily displaying program outputs and system messages during experiments.

Q: How does this kit ensure user and equipment safety?

A: It features high-quality FR4 PCB construction, fuse protection against electrical faults, and ESD compliance to prevent damage from electrostatic discharge, ensuring safe and reliable operation even in demanding lab environments.

Q: What programming language is supported by this kit?

A: Assembly language programming is fully supported, allowing users to directly manipulate the 8085 microprocessors resources for in-depth instruction-level understanding and control.
