CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER)

Price 1000.0 INR/ Piece

Get a Price/Quote
MOQ : 1 Piece

CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER) Specification

  • Measuring Range
  • 15V DC supply for OP-AMP
  • Display Type
  • Not included, external meters required
  • Usage
  • CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER)
  • Operating Voltage
  • 230V AC (mains)
  • Humidity
  • Up to 85% RH (Non-Condensing)
  • Max Height
  • 100 mm (Approx.)
  • Temperature
  • 0C50C
  • Response Time
  • Immediate, as per circuit design
  • Automation Grade
  • Manual
  • Accuracy
  • 1% (typical, for standard measurement points)
  • Frequency
  • 50 Hz
  • Mounting Type
  • Benchtop
  • Application
  • CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER)
  • Resolution
  • Standard Lab Grade
  • Product Type
  • CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER)
  • Power Supply
  • 230V 10%, 50Hz AC
  • Equipment Type
  • Discrete Component Trainer
  • Test Range
  • DC & AC voltage range for op-amp circuits
  • Number of Specimens
  • Single circuit operation
  • Interface Type
  • Test Points & Sockets
  • Features
  • On-board assembling, test points provided, inbuilt regulated power supply, experiment manual included
  • Capacity
  • Designed for single-user/single-circuit
  • Machine Weight
  • Approx. 2.5 kg
  • Control Mode
  • Manual & Regulated
  • Accessories Supplied
  • Experiment manual, jumper wires, connecting leads
  • Dimension
  • 300mm x 210mm x 100mm (Approx.)
  • Ideal For
  • Educational laboratories, Engineering Institutes, Technical Training Centers
  • Safety
  • Short-circuit and overload protection in power supply
  • Front Panel
  • Component layout and test points clearly marked
  • Component Type
  • Provided with all necessary resistors, capacitors, OP-AMP ICs (e.g., IC 741 or equivalent discrete) on board
  • Build
  • High-quality glass epoxy PCB with screen printed circuit
  • Fuse Protection
  • Provided in power supply section
  • Practical Experiments
  • Supports Inverting, Non-inverting, Integrator and Differentiator configuration tests


CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER) Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Packaging Details
  • Carton Box, Export Quality also Available
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001, CE


About CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER)

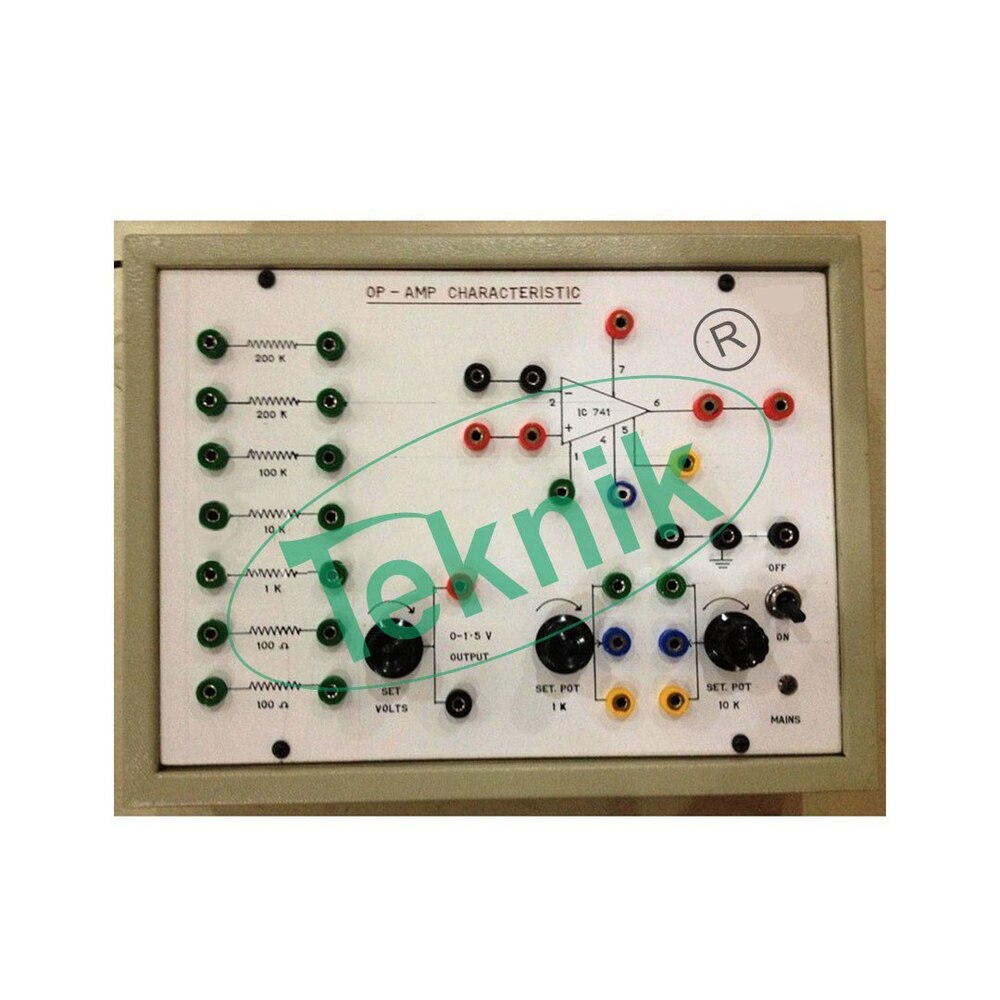

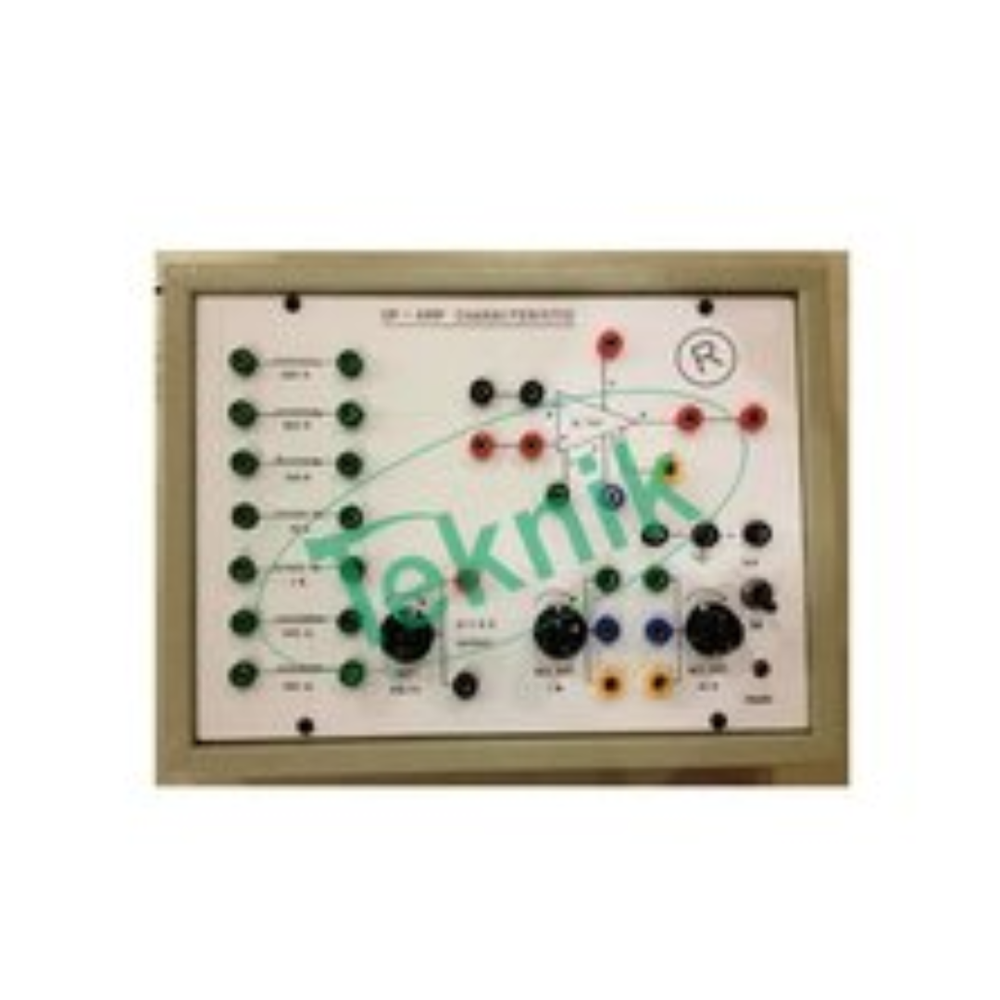

Get reduced complexity and a masterful learning experience with the CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER). This polished trainer features a crowning high-quality glass epoxy PCB, screen printed for user clarity. Access all necessary resistors, capacitors, and OP-AMP ICs, including IC 741 or its discrete equivalent, on board. Enjoy reliable short-circuit and overload protection, regulated power supply, and a clear front panel layout. Perform practical experimentsInverting, Non-inverting, Integrator, and Differentiatorsupported by an experiment manual, test points, and secure fuse protection. The deal includes jumper wires, connecting leads, ergonomic benchtop design, and is ideal for academic labs and technical centers.

Application and Directions for Use

The CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER) excels in educational laboratories, engineering institutes, and technical training centers. Site of application spans from distributor workbenches to advanced classroom experiments. To use, simply connect components using supplied jumper wires, refer to the experiment manual, and engage with single-circuit operations for testing and measurement of op-amp characteristics and configurations.


Delivery, Packaging, and Export Markets

Order processing for this premium trainer guarantees swift dispatch, with secure shipping practices that ensure safe arrival. Each product is packaged with care, including all necessary accessories for immediate use. Typical delivery times are minimized for both domestic and export orders. Main export markets include India and global technical education sectors, supported by reliable logistics partners and robust packaging standards.


FAQs of CHARACTERISTICS OF OPERATIONAL AMPLIFIER (DISCRETE COMPONENT TRAINER):


Q: How is the discrete component trainer assembled and used in experiments?

A: The trainer comes fully assembled with clear test points. Connect jumper wires and components as directed in the experiment manual and use external meters to measure circuit responses during practical tests.

Q: What safety features are included in the operational amplifier trainer?

A: It provides short-circuit and overload protection in the regulated power supply, and fuse protection in the power section to ensure safe operation during laboratory experiments.

Q: When can users expect delivery after placing an order?

A: Upon processing the order, users benefit from prompt and secure shipping. Delivery times vary by location, but orders are typically dispatched quickly for minimal waiting times.

Q: Where is this trainer most beneficial for application?

A: This equipment is ideal for use in educational laboratories, engineering institutes, and technical training centers, providing hands-on experience with op-amp circuit characteristics.

Q: What configurations can be tested with this trainer?

A: Users can conduct experiments with Inverting, Non-inverting, Integrator, and Differentiator configurations, exploring comprehensive operational amplifier behavior and responses.

Q: How does the trainer ensure reliable measurement accuracy?

A: The trainer employs lab-grade resolution and accuracy of 1% at standard measurement points, so results for DC and AC ranges in op-amp circuits remain dependable for learning and analysis.
