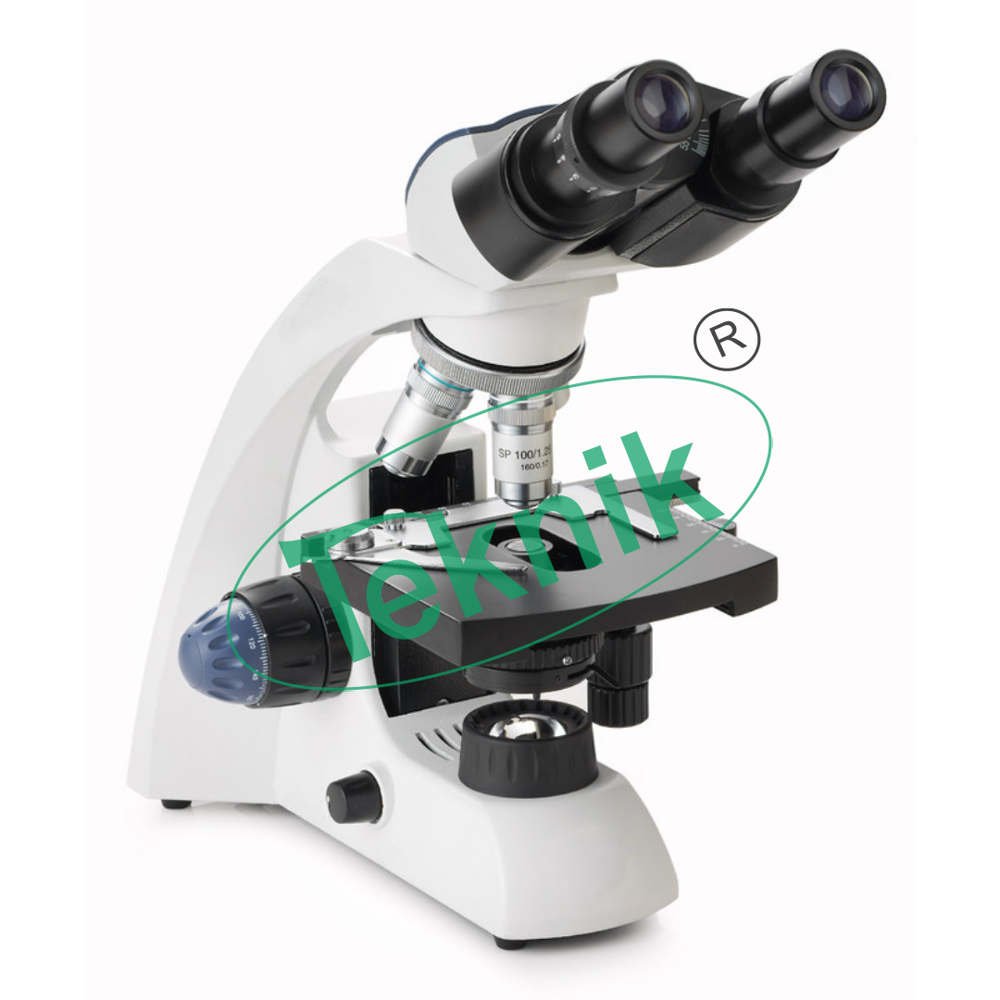

3W LED Binocular Microscope

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3W LED Binocular Microscope Specification

Model No

Product Type
Binocular Microscope

Voltage
220-240V AC Volt (v)

Core Components
Objective Lenses, Eyepieces, LED Illumination, Focusing Knobs

Usage
General Lab Equipments

Frequency
50/60 Hz Hertz (HZ)

Material
Metal Body with Optics Glass

Accuracy
99.9 %

Application
General Lab Equipments

Automation Grade
Manual

Power Source
Electric (3W LED Illumination)

Feature
High Resolution Optics,Energy Efficient, User-Friendly, High Clarity

Equipment Materials
Metal Body with Optics Glass

Type
Binocular Microscope

Dimension (L*W*H)
Approx. 370 x 270 x 400 mm Millimeter (mm)

Weight
Approx. 6 kg Kilograms (kg)

Objectives
Achromatic 4x, 10x, 40x, 100x (Oil)

Viewing Head
Binocular Inclined at 45, 360 Rotatable

Illumination
3W White LED with Intensity Control

Focusing
Coarse & Fine Focusing Mechanism

Condenser
NA 1.25 Abbe with Iris Diaphragm

Interpupillary Distance
Adjustable, 55-75mm

Nosepiece
Quadruple, Ball-Bearing Type

Color
White & Black

Light Source
Built-in 3W LED Lamp

Stage
Mechanical Stage with X-Y Movement

Eyepieces
Wide Field 10x/18mm (Pair)

3W LED Binocular Microscope Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About 3W LED Binocular Microscope

Binocular Microscope

Lighting: Transmitted 3W LED intensity adjustable
Head: Binocular tube Siedentopf inclined at 30 rotating 360

EYEPIECE

Large field : 10x / 20 mm
Dioptric adjustment on a tube.
Interpupillary distance : 47 to 76 mm
Number of turret positions : 5
Lens type : E-Plan, economic
DIN 4x / 0.10, 10x / 0.25, R40x / 0.65, R100x / 1.25 mm
Reverse : 4-position with detents.
Mounted on a ball bearing mechanism
Magnification : x40 to x1000
Condenser: Abe ON 1.25, adjustable in height
Diaphragm with graduation Opening for optional slide
Focusing : Macrometric and micrometric coaxial, 2 m accuracy
Friction adjustment. Platinum : 140 x 160 mm equipped with an integrated XY
overhang of 79 x 52 mm
Power supply : Internal power supply of 85-240 V

Advanced Illumination and Clarity

Equipped with a built-in 3W LED lamp and adjustable intensity control, this microscope ensures bright, clear observation, minimizing eye strain during prolonged use. The high-quality achromatic objective lenses deliver sharp, accurate images across a variety of magnifications. Its energy-efficient design supports sustainability while maintaining superior optical performance.

Ergonomic and User-Friendly Design

The binocular viewing head is inclined at 45 and rotatable 360, facilitating comfortable and flexible examination for users. Adjustable interpupillary distance (55-75mm) caters to diverse users, and the ball-bearing nosepiece enables smooth objective lens changes. The mechanical stage, with X-Y movement, streamlines sample navigation and positioning.

Reliable Construction for Laboratory Demands

Built from durable metal with premium optics glass, this microscope is designed to withstand routine usage in professional laboratory settings. Its high-resolution optics, accurate focusing mechanisms, and manual controls make it highly reliable for general lab equipment needs, covering applications in academia, healthcare, and research.

FAQs of 3W LED Binocular Microscope:

Q: How do I adjust the illumination intensity on the 3W LED Binocular Microscope?

A: The microscope features an integrated 3W white LED lamp with intensity control. You can adjust the brightness using the dial or switch typically located near the base, allowing precise illumination depending on your sample and preference.

Q: What makes the achromatic objective lenses beneficial for laboratory work?

A: The achromatic objective lenses (4x, 10x, 40x, and 100x oil) correct color and image distortion, resulting in sharp, true-color imaging at each magnification. This is essential for accurate analysis and documentation in laboratory environments.

Q: When is oil immersion (using the 100x objective) recommended during observation?

A: Oil immersion is used with the 100x objective lens to enhance image resolution and clarity for viewing extremely fine specimen details. It is best applied when high magnification and detailed visualization are necessary, such as in microbiology or cytology studies.

Q: Where can the 3W LED Binocular Microscope be used effectively?

A: This microscope is suitable for general laboratory settings, including educational institutions, hospital labs, research facilities, and diagnostic centers. Its versatile design and durable build make it ideal for frequent laboratory use.

Q: What is the process for focusing samples with this microscope?

A: The microscope is equipped with both coarse and fine focusing mechanisms. Start with the coarse focus to bring the sample into general view, then use the fine focus to obtain a sharp, crystal-clear image at any magnification level.

Q: How does the adjustable interpupillary distance improve user comfort?

A: The adjustable interpupillary distance (55-75mm) allows users to set the binocular eyepieces to the optimal width for their eyes. This ensures comfortable viewing, reduces eyestrain, and provides a personalized experience for different users.

Q: What are the benefits of the mechanical stage with X-Y movement?

A: The mechanical stage allows precise and smooth navigation of the slide in both horizontal (X) and vertical (Y) directions. This facilitates easy sample positioning and scanning, which is particularly advantageous for detailed examinations and systematic sample analysis.
